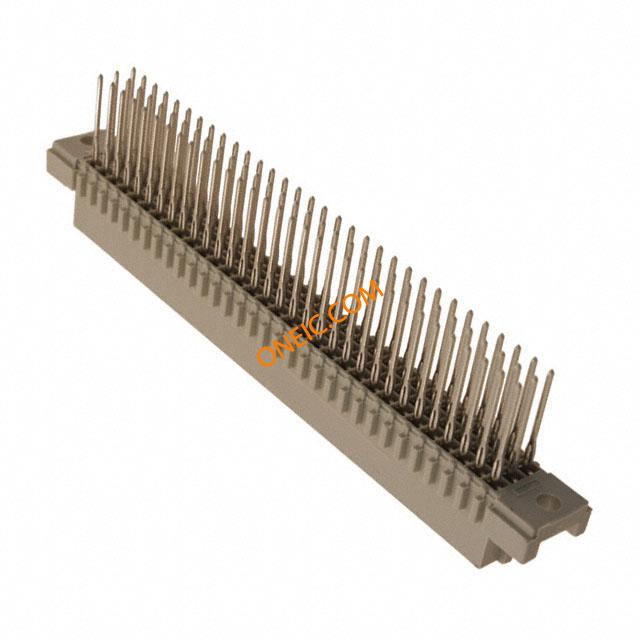

09032966851

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors 96P TYPE C FEMALE STRT PRESS IN TERM DIN-SIGNAL C096FP-13,2C1-2 Connector DIN-Signal press-in 96-way f ConnectorDIN-Signalpress-in96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 按式端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	03 09 09-03-296-6851 296 6851	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	20

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

接触电阻

15mΩ

最大额定电流

机械参数

深度	10.6	间距	0.100" (2.54mm)
高度	11.6	包装方式	Bulk
方向	直	端接方式	Press Fit
尾部长度	13.2 mm	安装类型	Straight
连接器类型	Receptacle, Female Sockets	接触镀层	Gold Over Nickel
排数	3	触头材料	Copper Alloy
壳体材料	Thermoplastic	总长度	95
端接排数	a/b/c	端接样式	Press Fit
触点数	96	位数	96
绝缘材料 - 材质	Thermoplastic, Glass Filled

产品信息

类型	DIN 41612	样式	C
连接器性别	F	系列	09 03
等级代码	C2	CAD图纸	3D CAD Model
产品子类型	Receptacles	插座类型与数量	A/b/c
加载位置数	All

环境参数

额定等级	C2	级别、等级	2
工作温度	+125°C
