点击放大查看

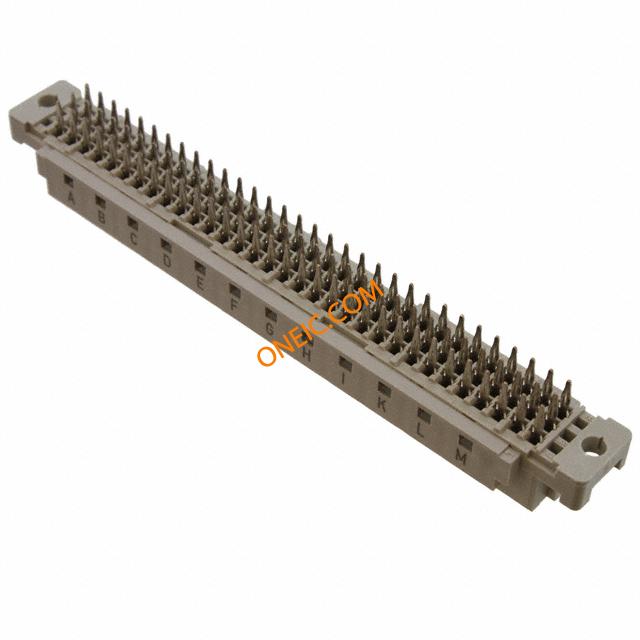

09037966850
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 03 09 09-03-796-6850 6850 796 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2A |
Mechanical
| Depth | 12.8 | Pitch | 0.100" (2.54mm) |
| Height | 11.6 | Packaging | Bulk |
| Orientation | 直 | Termination | Press Fit |
| Mounting Type | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94.9 | Termination Rows | a/b/c |
| Number of Contacts | 96 | Number of Positions | 96 |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | Backplane | Style | C |
| Gender | F | Series | 09 03 |
| Class Code | C2 | CAD Drawing | 3D CAD Model |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | All |
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +125°C | ||
