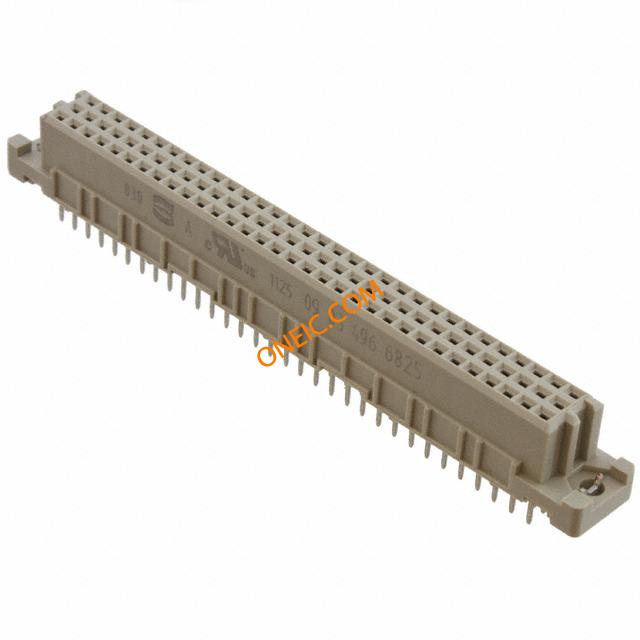

09034966825

Manufacturer	HARTING Technology Group
Description	DIN-SIGNAL C096FS-4,5C1-2-CLIP DIN 41612 Connectors 96P TYPE C FEMALE 3 ROW SNP IN CLIPS Connector DIN-Signal solder 96-way f Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole ConnectorDIN-Signalsolder96-wayf Harting 09 03 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	03 09 09-03-496-6825 496 6825	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	100

合规参数

RoHS

Compliant

材料阻燃等级

UL94 V-0

电气参数

接触电阻

20mΩ

最大额定电流

机械参数

深度	10.5 mm	间距	0.100" (2.54mm)
高度	11.6 mm	包装方式	Bulk
方向	直	端接方式	Solder
安装类型	Through Hole	连接器类型	Receptacle, Female Sockets
接触镀层	Gold over Nickel	安装样式	Through Hole
排数	3	触头材料	Copper Alloy
壳体材料	Thermoplastic	总长度	94.9 mm
端接排数	a/b/c	触点数	96
位数	96	绝缘材料 - 材质	Thermoplastic, Glass Filled

产品信息

类型	C	样式	C
连接器性别	Female	系列	09 03
已删除	Compliant	产品特性	Mounting Clips
等级代码	C2	CAD图纸	3D CAD Model
插座类型与数量	A/b/c	加载位置数	All

环境参数

额定等级	C2	级别、等级	2
工作温度	+125°C
