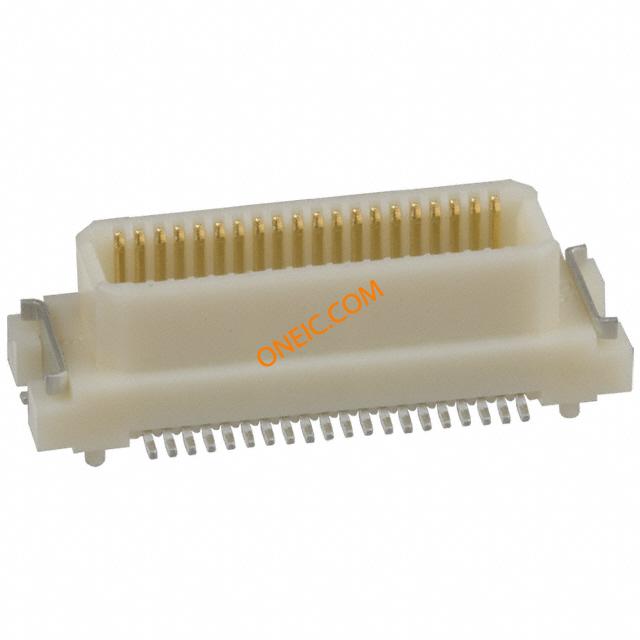

DF17(2.0)-40DP-0.5V(57)

Business

Other Names	H11130DKR	Product Category	Board to Board & Mezzanine Connectors
Standard Package	1,000	Factory Pack Quantity	1000

RoHS

Lead free / RoHS Compliant

Voltage Rating	50 V	Contact Resistance	60 mohm
Current Rating (Max)	300 mA	Voltage - Supply (Min)	50VAC

Depth	4.7 mm	Pitch	0.020" (0.50mm)
Height	4.3 mm	Packaging	Tape & Reel (TR)
Termination	Solder	Housing Color	White
Mounting Type	Surface Mount	Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold	Mounting Style	Surface Mount
Number of Rows	2	Stacking Method	2 mm
Contact Material	Phosphor Copper	Housing Material	Polyamide (PA)
Length - Overall	15 mm	Termination Style	SMD
Height Above Board	0.169" (4.30mm)	Number of Contacts	40
Number of Positions	40	Height - Seated (Max)	0.169" (4.30mm)
Mated Stacking Heights	5mm, 6mm

Type	Board to Board	Gender	HDR
Series	DF17	DELETED	Compliant
Features	Board Guide, Solder Retention	Main Purpose	Board Guide, Solder Retention
Product Type	Headers	Output Configuration	Surface Mount
