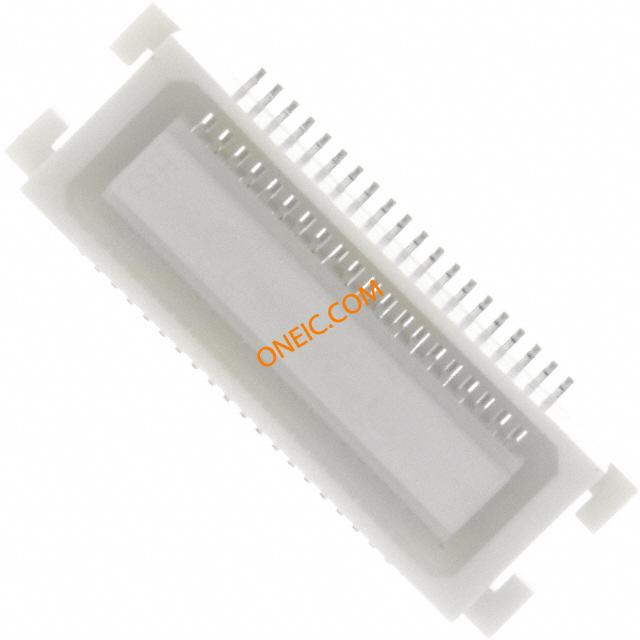

DF17A(4.0)-40DS-0.5V(57)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | H11123TR | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 50 V | Current Rating (Max) | 300 mA |
Mechanical
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Stacking Method | 4 mm | Contact Material | Phosphor Copper |
| Housing Material | Polyamide (PA) | Termination Style | SMD |
| Height Above Board | 0.177" (4.50mm) | Number of Contacts | 40 |
| Number of Positions | 40 | Mated Stacking Heights | 6mm, 6.5mm, 8mm |
Product Info
| Series | DF17 | Features | Board Guide |
| Product Type | Receptacles | ||
Documents & Media
PDF Document
PDF Document
-40DP-0.5V(51).JPG&w=3840&q=75)
40DP0.5V(51.jpg&w=3840&q=75)
40DP0.5V51.jpg&w=3840&q=75)
40DP0.5V(51.jpg&w=3840&q=75)
-40DP-0.5V(57).JPG&w=3840&q=75)
Sourcing & traceability
- Datasheet
- DF17 Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
