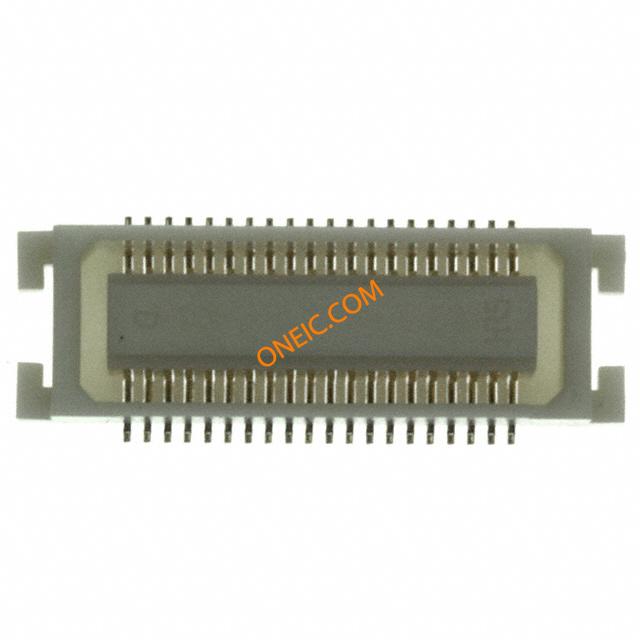

DF17A(3.0)-40DS-0.5V(57)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | H11607TR | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 50 V | Current Rating (Max) | 300 mA |
| Insulation Resistance | 500 MOhms | ||
Mechanical
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Stacking Method | 3 mm | Contact Material | Phosphor Copper |
| Housing Material | Polyamide (PA) | Termination Style | SMD |
| Height Above Board | 0.138" (3.50mm) | Number of Contacts | 40 |
| Number of Positions | 40 | Mated Stacking Heights | 5mm, 5.5mm, 7mm |
Product Info
| Series | DF17 | Features | Board Guide |
| Product Type | Receptacles | ||
Environmental
| Operating Temperature | - 35 C to + 85 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
ZX64-B-5S-UNIT(14)
Hirose Connector
$3.4136
Details
-40DP-0.5V(51).JPG&w=3840&q=75)

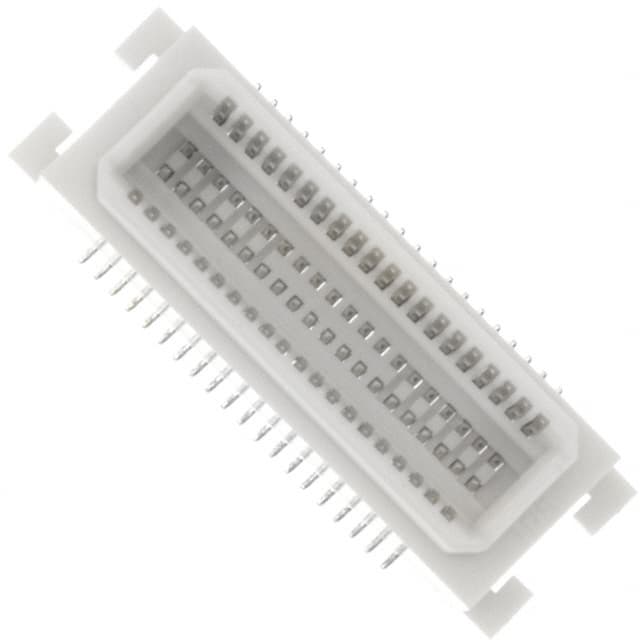

DF17A(4.0)-40DP-0.5V(51)
Hirose Connector
$7.4746
Details
40DP0.5V(51.jpg&w=3840&q=75)

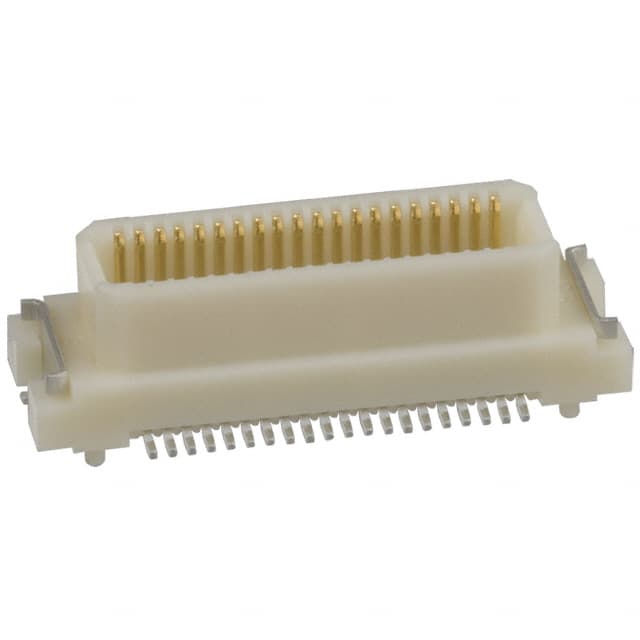

DF17(2.0)-40DP-0.5V(57)
Hirose Connector
$12.6660
Details
40DP0.5V51.jpg&w=3840&q=75)

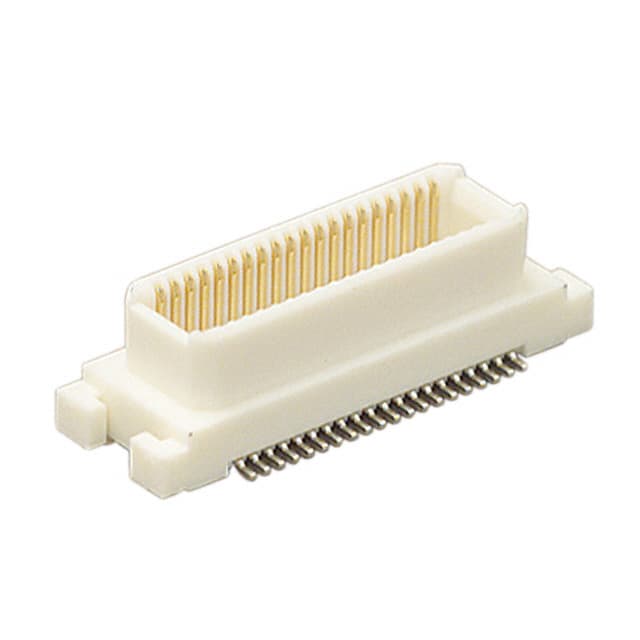

DF17A(2.0)-40DP-0.5V(57)
Hirose Connector
$9.2820
Details
40DP0.5V(51.jpg&w=3840&q=75)

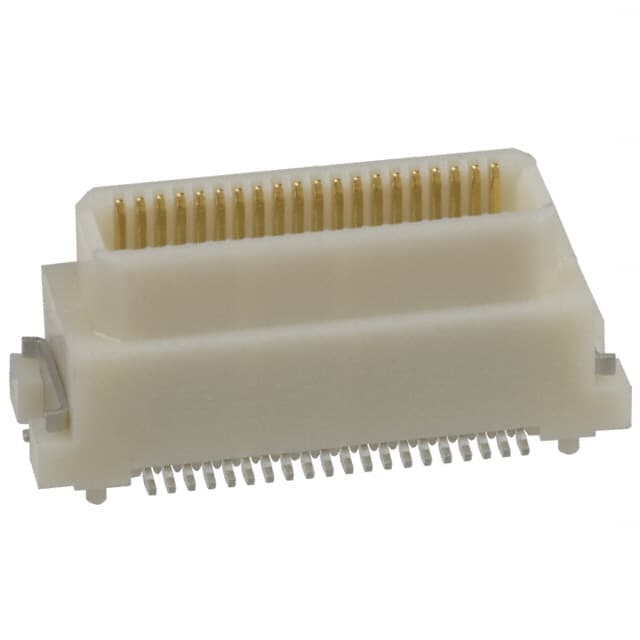

DF17(4.0)-40DP-0.5V(57)
Hirose Connector
$17.8160
Details
-40DP-0.5V(57).JPG&w=3840&q=75)

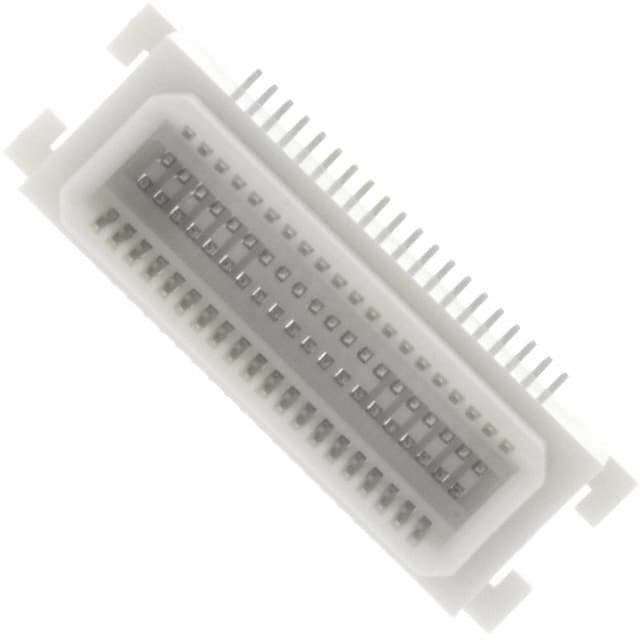

DF17A(4.0)-40DP-0.5V(57)
