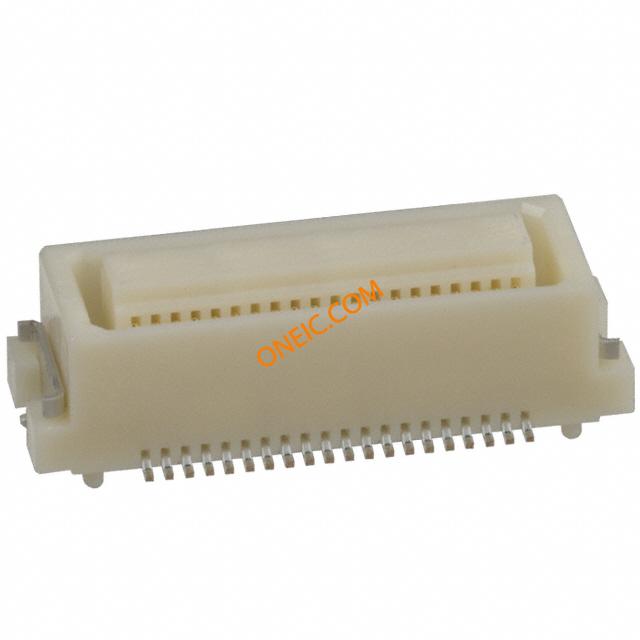

DF17(4.0)-40DS-0.5V(57)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | H11116DKR | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 50 V | Contact Resistance | 60 mohm |
| Current Rating (Max) | 300 mA | Voltage - Supply (Min) | 50VAC |
Mechanical
| Depth | 4.7 mm | Pitch | 0.020" (0.50mm) |
| Height | 4.5 mm | Packaging | Tape & Reel (TR) |
| Termination | Solder | Housing Color | White |
| Mounting Type | Surface Mount | Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold | Mounting Style | Surface Mount |
| Number of Rows | 2 | Stacking Method | 4 mm |
| Contact Material | Phosphor Copper | Housing Material | Polyamide (PA) |
| Length - Overall | 15 mm | Termination Style | SMD |
| Height Above Board | 0.177" (4.50mm) | Number of Contacts | 40 |
| Number of Positions | 40 | Height - Seated (Max) | 0.177" (4.50mm) |
| Mated Stacking Heights | 6mm, 6.5mm, 8mm | ||
Product Info
| Type | Board to Board | Gender | RCP |
| Series | DF17 | DELETED | Compliant |
| Features | Board Guide, Solder Retention | Main Purpose | Board Guide, Solder Retention |
| Product Type | Receptacles | Output Configuration | Surface Mount |
Environmental
| Mating Cycles | 6mm, 6.5mm, 8mm | Operating Temperature | -35C to 85C |
Documents & Media
PDF Document
PDF Document
-40DP-0.5V(51).JPG&w=3840&q=75)
40DP0.5V(51.jpg&w=3840&q=75)
40DP0.5V51.jpg&w=3840&q=75)
40DP0.5V(51.jpg&w=3840&q=75)
-40DP-0.5V(57).JPG&w=3840&q=75)
