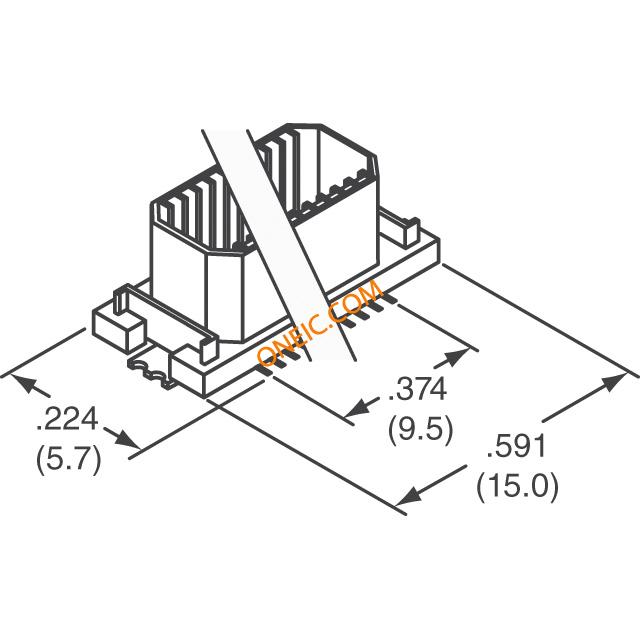

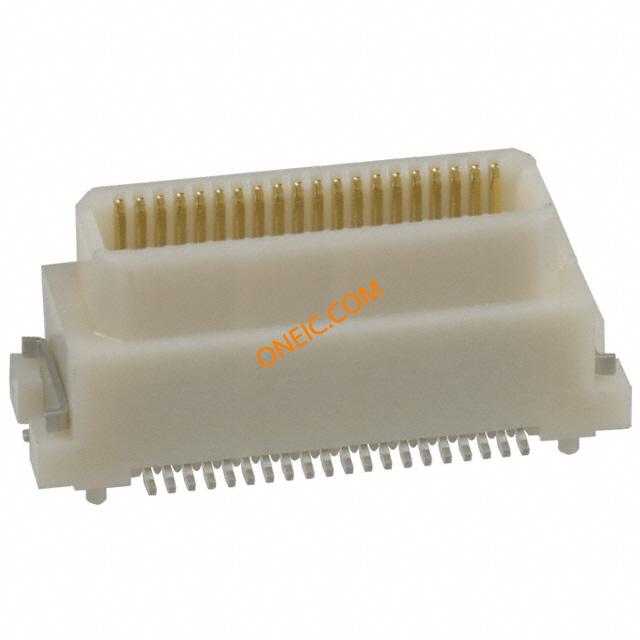

DF17(4.0)-40DP-0.5V(57)

Manufacturer	Hirose Electric Co., Ltd.
Description	基板間およびメザニンコネクタ 40 POS HDR SMT GOLD W/FITTING AND BOSS CONN HEADER 40POS .5MM SMD W/FIT Board to Board & Mezzanine Connectors 40 POS HDR SMT GOLD W/FITTING AND BOSS Conn Board to Board HDR 40 POS 0.5mm Solder ST SMD Embossed T/R
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	H11144DKR	产品类别	Board to Board & Mezzanine Connectors
标准包装数量	1,000	工厂包装数量	1000

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压	50 V	接触电阻	60 mohm
最大额定电流	300 mA	最小供电电压	50VAC

机械参数

深度	4.7 mm	间距	0.020" (0.50mm)
高度	6.3 mm	包装方式	Tape & Reel (TR)
端接方式	Solder	外壳颜色	White
安装类型	Surface Mount	连接器类型	Header, Outer Shroud Contacts
接触镀层	Gold	安装样式	Surface Mount
排数	2	堆叠方法	4 mm
触头材料	Phosphor Copper	壳体材料	Polyamide (PA)
总长度	15 mm	端接样式	SMD
板面高度	0.248" (6.30mm)	触点数	40
位数	40	安装高度（最大）	0.248" (6.30mm)
配接堆叠高度	7mm, 8mm

产品信息

类型	Board to Board	连接器性别	HDR
系列	DF17	已删除	Compliant
产品特性	Board Guide, Solder Retention	主要用途	Board Guide, Solder Retention
产品子类型	Headers	输出配置	Surface Mount

环境参数

插拔次数

7mm, 8mm

工作温度

-35C to 85C

Documents & Media

PDF Document

DF17 Series

PDF Document

e68300022.pdf
