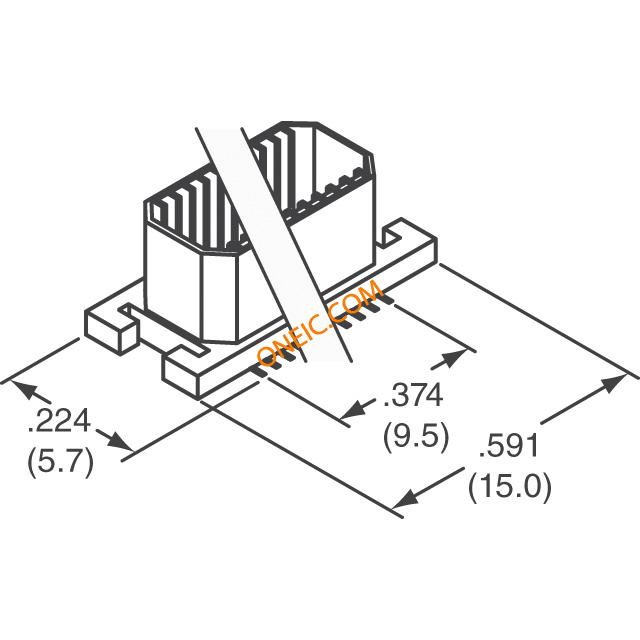

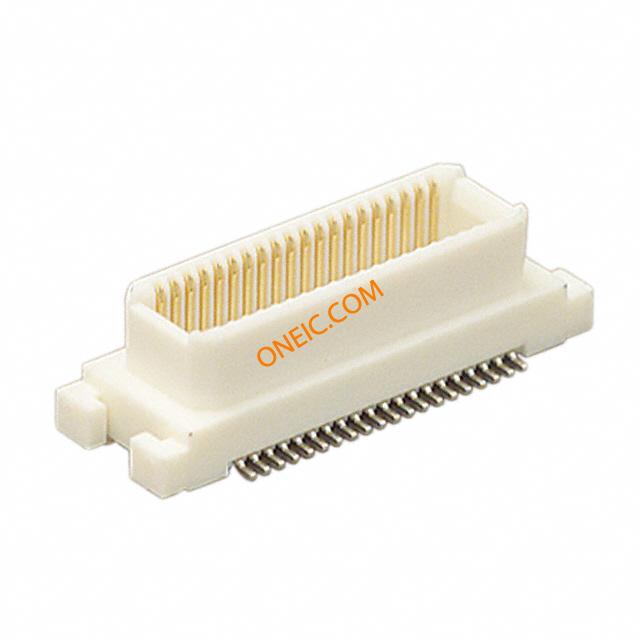

DF17A(2.0)-40DP-0.5V(57)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | H11137DKR | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 50 V | Current Rating (Max) | 300 mA |
| Insulation Resistance | 500 MOhms | ||
Mechanical
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Stacking Method | 2 mm | Contact Material | Phosphor Copper |
| Housing Material | Polyamide (PA) | Termination Style | SMD |
| Height Above Board | 0.169" (4.30mm) | Number of Contacts | 40 |
| Number of Positions | 40 | Mated Stacking Heights | 5mm, 6mm |
Product Info
| Series | DF17 | Features | Board Guide |
| Product Type | Headers | ||
Environmental
| Operating Temperature | - 35 C to + 85 C | ||
Documents & Media
PDF Document
PDF Document
40DS0.5V(51).jpg&w=3840&q=75)
-40DS-0.5V(57).JPG&w=3840&q=75)
-40DS-0.5V(57).JPG&w=3840&q=75)
40DS0.5V(51.jpg&w=3840&q=75)
Sourcing & traceability
- Datasheet
- DF17 Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
