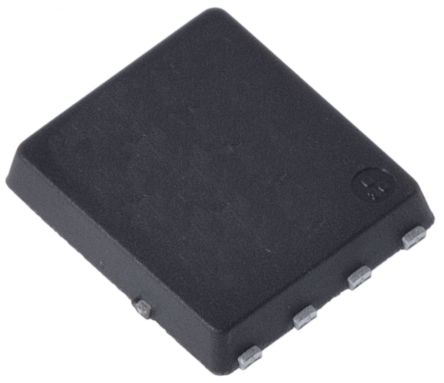

BSC011N03LS transistor Series

The BSC011N03LS from Infineon is a 30V N-channel MOSFET designed for power applications. If you're working on anything that requires switching high currents at moderate voltages, these transistors are a go-to choice. They are particularly useful in power supplies, inverters, and motor drives where efficiency and reliability are key.

One thing worth noting is their low on-state resistance, which helps minimize power losses during operation. Engineers tend to reach for this when they need a balance between performance and cost. The 30V rating makes them suitable for a wide range of applications, from consumer electronics to industrial equipment. Another practical benefit is their thermal performance; they handle heat well, allowing for more compact designs without compromising on cooling requirements.

These MOSFETs are also known for their robustness against ESD (electrostatic discharge), which is crucial in environments where static electricity might be an issue. Overall, if you're looking for a reliable MOSFET for your next power application, the BSC011N03LS is definitely worth considering.

Mfr Part #	Quantity Available	Price	Category	Vgs (Max)	On-State Resistance (Max)	Width	Channel Type	Operating Temperature	Factory Pack Quantity	RoHS	Fall Time	Gate Charge	Rise Time (Typ)	Transistor Type	Delay to 1st Tap	Number of Channels	Number of Elements	Vgs(th) (Max) @ Id	Power - Average Forward	Power Dissipation (Max)	Vce(on) (Max) @ Vge, Ic	Current Transfer Ratio (Min)	Switch Time (Ton, Toff) (Max)	Current - Continuous Drain (Id) @ 25degC	Height	Length	Packaging	Mounting Type	Mounting Style	Package / Case	Package Quantity	Series	Technology	Manufacturer	Configuration	Tradename	Voltage - Breakdown	Rds On (Max) @ Id, Vgs	Current - Peak Pulse (10/1000us)	Other Names	Part # Aliases	Standard Package	FET Type	FET Feature	Power - Max	Power - Rated	Delay Time - ON	Output Function	Delay Time - OFF	Voltage - Supply	Resistance - Input	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Voltage - Gate Trigger (Vgt) (Max)	Current - Drain (Idss) @ Vds (Vgs=0)	Input Capacitance (Ciss) (Max) @ Vds	Number of Pins	Size / Dimension	Supplier Device Package	Function	Card Standard	Standard Package Name	EU RoHS	Lead Style	Length - Overall	Number of Positions	Shell Size - Insert	Printed Circuit Board	Fall Time (Typ)	Propagation Delay (Max)
3 BSC011N03LS Trans MOSFET N-CH 30V 37A 8-Pin TDSON EP MOSFET N-CH 30V 100A 8TDSON MOSFET N-CH 30V 100A Infineon , N沟道 MOSFET, 100 A, Vds=30 V, 8针 TDSON封装 MOSFET N-Ch 30V 100A TDSON-8 OptiMOS infineon technologies	13391	1: ¥8.908	-	20 V	900 uOhms	5.35mm	Enhancement	-55 to 150 °C	5000	Lead free / RoHS Compliant	6.2 ns	72 nC	8.8 ns	N-Channel	37 ns	1 Channel	1	2.2V @ 250µA	96 W	96 W	30 V	170 S	6.7 ns	37A (Ta), 100A (Tc)	1.1mm	6.1mm	Tape & Reel (TR)	Surface Mount	SMD/SMT	8TDSON EP	TDSON	BSC011N03	Si	Infineon Technologies	Single Quad Drain Triple Source	OptiMOS	30 V	1.1@10V mOhm	37 A	BSC011N03LSCT	BSC011N03LSATMA1 SP000799082	Tape & Reel	MOSFET N-Channel, Metal Oxide	Logic Level Gate	96W	2.5 W	6.7 ns	增强	37 ns	1V	0.0014 Ω	72nC @ 10V	30V	+/- 20 V	100 A	4700pF @ 15V	8	6.1 x 5.35 x 1.1mm	PG-TDSON-8	Y	功率 MOSFET	-	-	-	-	-	-	-	6.2 ns	8.8 ns
BSC011N03LSIXT MOSFET OptiMOS Power MOSFET MOSFET N-Ch 30V 100A TSDSON-8 OptiMOS Infineon Technologies	10	1: ¥20.876	-	20 V	900 uOhms	5.15 mm	Enhancement	- 55 C	5000	RoHS Compliant	6.2 ns	72 nC	8.8 ns	N-Channel	37 ns	1 Channel	-	1.2 V	96 W	-	30 V	80 S	6.4 ns	100 A	1.27 mm	5.9 mm	Reel	-	SMD/SMT	PG-TSDSON-8	-	BSC011N03	Si	Infineon Technologies	Single Quad Drain Triple Source	OptiMOS	-	1.1 mOhms	-	-	BSC011N03LSIATMA1 SP000884574	-	-	-	-	96 W	-	-	-	-	-	-	-	+/- 20 V	100 A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BSC011N03LSATMA1 Trans MOSFET N-CH 30V 37A 8-Pin TDSON EP MOSFET N-Ch 30V 100A TDSON-8 OptiMOS Infineon Technologies AG	8340	5000: ¥4.371	-	20 V	900 uOhms	5.15 mm	Enhancement	+ 150 C	5000	RoHS Compliant	6.2 ns	96 nC	8.8 ns	N-Channel	37 ns	1 Channel	1	1.2 V	96 W	2500	30 V	85 S	6.7 ns	100 A	1.27 mm	5.9 mm	Reel	Surface Mount	SMD/SMT	TDSON-8	TDSON EP	BSC011N03	Si	Infineon Technologies	1 N-Channel	OptiMOS	30	-	37	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	SON	Compliant	No Lead	5.15	8	1	8	-	-
BSC011N03LSIATMA1 Trans MOSFET N-CH 30V 37A 8-Pin TDSON EP Infineon Technologies AG	60000	5000: ¥3.9173	-	20	1.1@10V	5.9	Enhancement	150	-	-	-	-	-	-	-	-	1	-	-	2500	-	-	-	-	-	-	-	Surface Mount	-	-	TDSON EP	-	-	-	-	-	30	-	37	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	SON	Compliant	No Lead	5.15	8	1	8	-	-
3 BSC011N03LSI MOSFET N-CH 30V 37A TDSON-8 Infineon , N沟道 MOSFET, 100 A, Vds=30 V, 8针 TDSON封装 MOSFET N-Ch 30V 100A TSDSON-8 OptiMOS Infineon Technologies	10	1: ¥9.20	-	20 V	900 uOhms	5.35mm	N	+150 °C	5000	Lead free / RoHS Compliant	6.2 ns	90 nC	9.2 ns	Si	35 ns	1 Channel	1	2V @ 250µA	96 W	96 W	30 V	160s	6.4 ns	37A (Ta), 100A (Tc)	1.1mm	6.1mm	Tape & Reel (TR)	Surface Mount	SMD/SMT	8-PowerTDFN	TDSON	BSC011N03	Si	Infineon Technologies	1 N-Channel	-	-	1.1 mOhm @ 30A, 10V	-	BSC011N03LSICT	-	5,000	MOSFET N-Channel, Metal Oxide	Logic Level Gate	96W	-	6.4 ns	增强	35 ns	0.56V	0.0014 Ω	68nC @ 10V	30V	-	-	4300pF @ 15V	8	6.1 x 5.35 x 1.1mm	PG-TDSON-8	Y	功率 MOSFET	-	-	-	-	-	-	-	-	-
BSC011N03LSTATMA1 INFINEON	100	1: ¥10.9146	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
