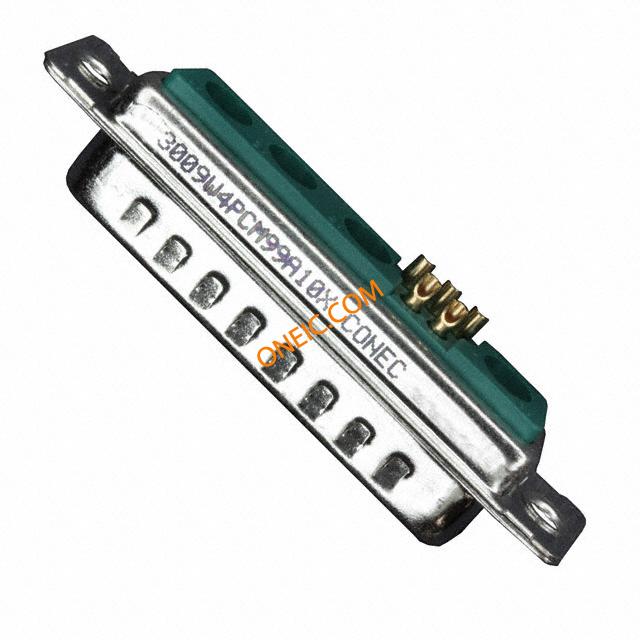

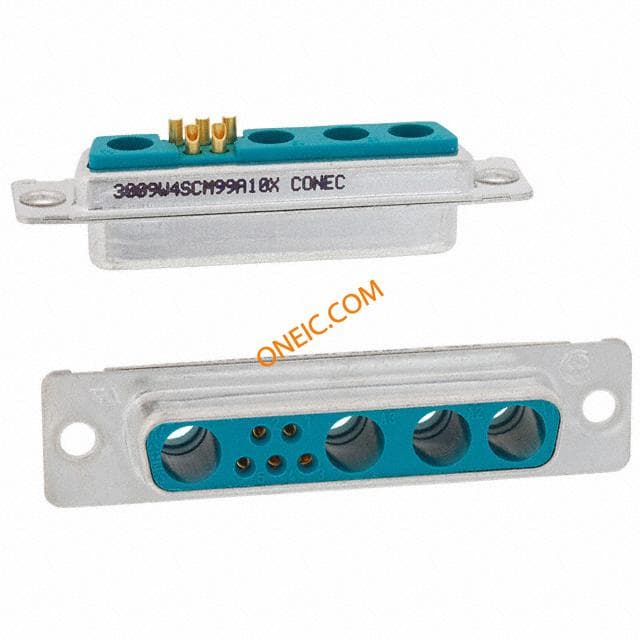

3009W4PCM99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 9W4 SOLDER CUP MALE Conn D-Subminiature M 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port CONN DSUB COMBO 9POS 9W4 PLUG Plug; Special D-Sub; PIN:9(4+5); male; w/o special terminals
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1118	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压	250V	额定电压值	250V
最大额定电流	5A	连接器类型 - 电压输入	w/o special terminals

机械参数

颜色	Green	深度	14.39
高度	12.93	重量	8.6 g
包装方式	Tray	外壳尺寸	3
端接方式	Solder Cup	触头类型	Coax or Power (Not Included) and Signal
安装类型	Straight	外壳镀层	Tin
连接器类型	Plug, Male Pins	接触镀层	Gold Over Nickel
法兰特征	Housing/Shell (Unthreaded)	安装样式	Panel
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub, Combo	触头材料	Copper Alloy
壳体材料	Steel	总长度	53.42
包装数量	25	尺寸/外形	see
连接器 - 电缆	plug	端接样式	Solder
第一触头极性	M	触点数	5
位数	9 (5 + 4 Coax or Power)	外壳材料及表面处理	Steel, Tin Plated
典型触点布局	9W4P	接触镀层厚度	30µin (0.76µm)
小外径	47.04mm	外壳尺寸，连接器布局	3 (DB, B) - 9W4
第一连接器安装特征	9/4

产品信息

SPG	25	类型	D-Subminiature
连接器性别	Male	系列	300
原理图	see	端口数	1
单元数量	1

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A1237.pdf

PDF Document

Comb D-SUB Conn Tech Data

PDF Document

3009W4PCM99A10X Drawing

PDF Document

Combination D-SUB Spec
