点击放大查看

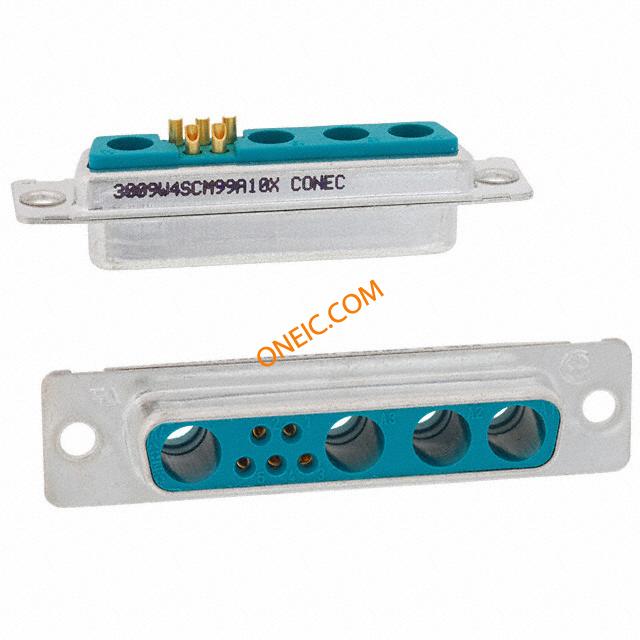

3009W4SCM99A10X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Mixed Contact Connectors 9W4 SOLDER CUP FEMALE Conn D-Subminiature F 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port CONN DSUB COMBO 9POS 9W4 SOCKET Plug; Special D-Sub; PIN:9(4+5); female; w/o special terminals
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1117	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	10

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
抗辐射加固	No

电气参数

额定电压	250V	额定电压值	250V
最大额定电流	5A	连接器类型 - 电压输入	w/o special terminals

机械参数

颜色	Green	深度	14.6 mm
高度	12.93 mm	重量	0.01 kg
包装方式	Tray	外壳尺寸	3
端接方式	Solder Cup	触点形式	Coax or Power (Not Included) and Signal
触头类型	Coax or Power (Not Included) and Signal	安装类型	Straight
外壳镀层	Tin	连接器类型	Receptacle, Female Sockets
接触镀层	Gold	法兰特征	Housing/Shell (Unthreaded)
安装样式	Panel	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub, Combo
触头材料	Copper Alloy	壳体材料	Steel
总长度	53.42 mm	包装数量	25
尺寸/外形	see	连接器 - 电缆	plug
端接样式	Solder	第一触头极性	F
触点数	5	位数	9 (5 + 4 Coax or Power)
外壳材料及表面处理	Steel, Tin Plated	典型触点布局	9W4S
接触镀层厚度	30µin (0.76µm)	小外径	47.04mm
外壳尺寸，连接器布局	3 (DB, B) - 9W4	第一连接器安装特征	9/4

产品信息

SPG	25	类型	D-Subminiature
连接器性别	Female	系列	300
原理图	see	端口数	1
单元数量	1	输出配置	Free Hanging (In-Line)

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

13K1A673.pdf

PDF Document

Comb D-SUB Conn Tech Data

PDF Document

3009W4SCM99A10X Drawing

PDF Document

Combination D-SUB Spec
