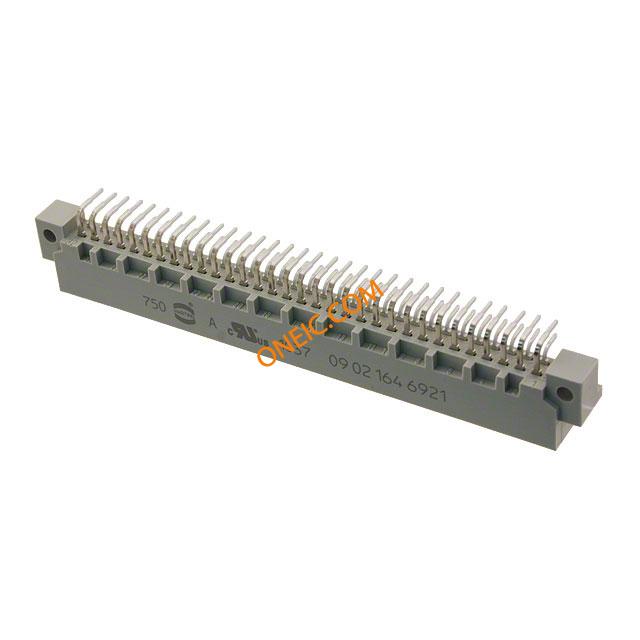

09021646921
| Manufacturer | |
| Description | Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P 2A MALE R/A SLDR DIN-SIGNAL B064POS MS-3,0C1-2 64 way 2 row body DIN41612 a/b plug,2A DINConnector;64;2A(Max.);2.54mm(Row);Male;AngledSolderPin;3mm Socket; DIN 41612,type B; male; PIN:64; a+b; THT; angled 90°; 2A Plug; DIN 41612,type B; female; PIN:64; a+b; THT; straight; 2A Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b, 直角 DIN 41612 插头, 焊接端接 |
| Category |
商业参数
| 零件号别名 | 02 09 09-02-164-6921 164 6921 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | IEC60603-2 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 深度 | 15.18 | 间距 | 0.100" (2.54mm) |
| 高度 | 8.5 | 长度 | 3mm |
| 重量 | 0.01 kg | 包装方式 | Bulk |
| 外壳尺寸 | B | 方向 | angled 90° |
| 端接方式 | Solder | 引脚间距 | len. 3mm |
| 引脚长度（针脚） | 3mm | 尾部长度 | 3 mm |
| 安装类型 | Right Angle | 行程角度 | Right |
| 连接器类型 | Header, Male Pins | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 94mm |
| 包装数量 | 10 | 主要材料 | Industrial |
| 端接排数 | 焊接 | 连接器 - 电缆 | socket |
| 插针孔直径 | 2.54mm | 端接样式 | Solder Pin |
| 触点数 | 64 | 位数 | 64 |
| 绝缘材料 - 材质 | Thermoplastic, Glass Filled | 安装孔直径 | 2.8mm |
| 触点材料 - 镀层 | gold plated | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装特征 | a+b | ||
产品信息
| SPG | 10 | 类型 | Shrouded Header |
| 样式 | B | 连接器性别 | M |
| CAD图纸 | 3D CAD Model | 单元数量 | 1 |
| 插座类型与数量 | A/b | 加载位置数 | All |
环境参数
| 额定等级 | C2 | 距离 | 1.2mm(Min.) |
| 级别、等级 | 2 | 机械寿命 | 400cycles |
| 工作温度 | -55...125°C | ||
