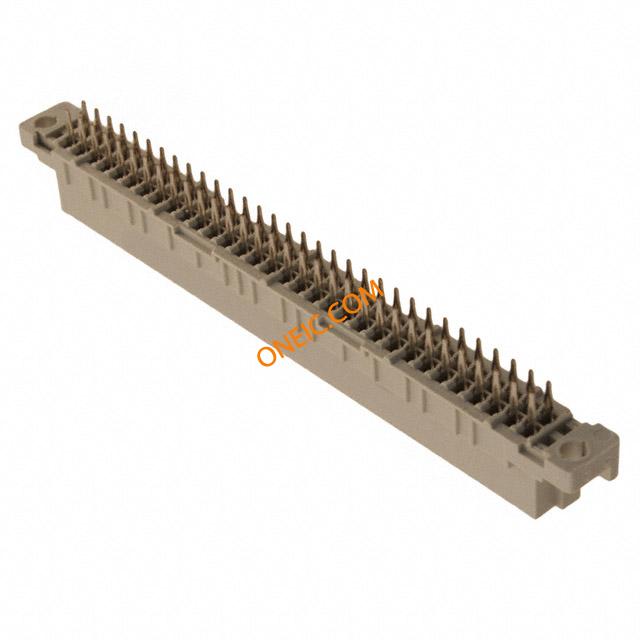

09022646850

Manufacturer	HARTING Technology Group
Description	DIN-SIGNAL B064POS FP-4,5C1-2 DIN 41612 Connectors DINSIGB064FP-4,5C1-2 PCB DIN connector Type B 64-pin F Connector,Din41612,Female,64Contacts,Press-inPin Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b 直向 DIN 41612 插座, 按式端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	02 09 09-02-264-6850 264 6850	标准包装数量	1
工厂包装数量	20

合规参数

RoHS	Compliant	标准	IEC60603-2
材料阻燃等级	UL94 V-0

电气参数

接触电阻

15mΩ

最大额定电流

机械参数

间距	0.100" (2.54mm)	包装方式	Bulk
外壳尺寸	B	方向	直
端接方式	Press-Fit	引脚长度（针脚）	4.5mm
安装类型	Panel Mount; Through Hole	行程角度	Straight
连接器类型	Receptacle, Female Sockets	接触镀层	Gold over Nickel
排数	2	触头材料	Copper Alloy
壳体材料	Thermoplastic	总长度	94.9mm
主要材料	Industrial	端接排数	按式
插针孔直径	2.54mm	触点数	64
位数	64	绝缘材料 - 材质	Thermoplastic, Glass Filled
安装孔直径	2.8mm

产品信息

类型	CableSocket	样式	B
连接器性别	Female	产品特性	Backplane
CAD图纸	3D CAD Model	插座类型与数量	A/b
加载位置数	All

环境参数

额定等级	C2	级别、等级	2
工作温度	+105°C

相关型号

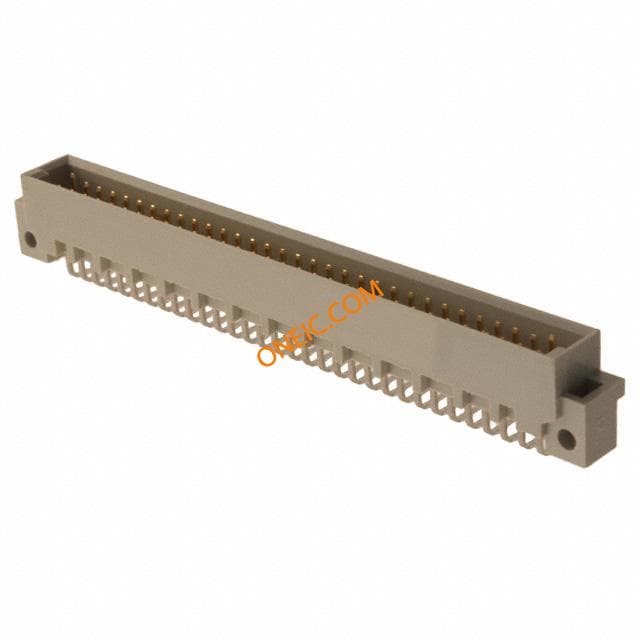

09021646951

HARTING

DIN 41612 Connectors DIN-SIGNAL B064MS-3,0C1-2-V2 DIN-SIGNAL B064POS MS-3,0C1-2

¥25.7720

详情

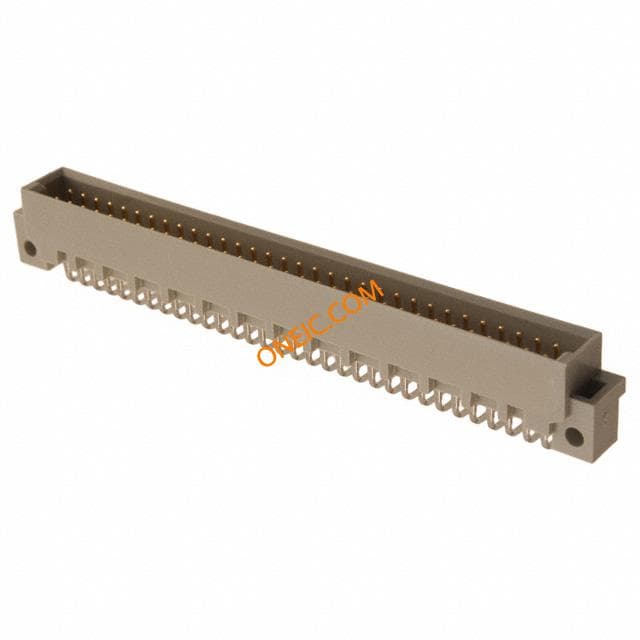

09021647921

Harting Technology Group

Conn DIN 41612 M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P MALE RA TYPE B 2.54MM STANDARD DIN-SIGNAL B064POS MS-3,0C1-3 64 way 2 row DIN41612 plug,r/a terminals Harting 64 路 2.54mm 节距, B型 C3等级, 2 行 a/b, 直角 DIN 41612 插头, 焊接端接

¥11.6280

详情

09023646921

Harting Technology Group

Conn DIN 41612 HDR 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors B064MS-3,0C1-2-CLIP DIN SIGNAL DIN-SIGNAL B064POS MS-3,0C1-2 Connector DIN-Signal solder 64-way m ConnectorDIN-Signalsolder64-waym Harting 09 03 系列 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b, 直角 DIN 41612 插头, 焊接端接

¥19.7880

详情

09021646922

Harting Technology Group

Conn DIN 41612 M 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P MALE RA TYPE B 2.54MM STANDARD DIN-SIGNAL B064POS MS-3,0C1-2 Socket; DIN 41612,type B; male; PIN:64; a+b; THT; straight; 2A Harting 09 02 系列 64 路, B型 C2等级 a/b 直向 DIN 41612 插头, 焊接端接

¥13.5907

详情

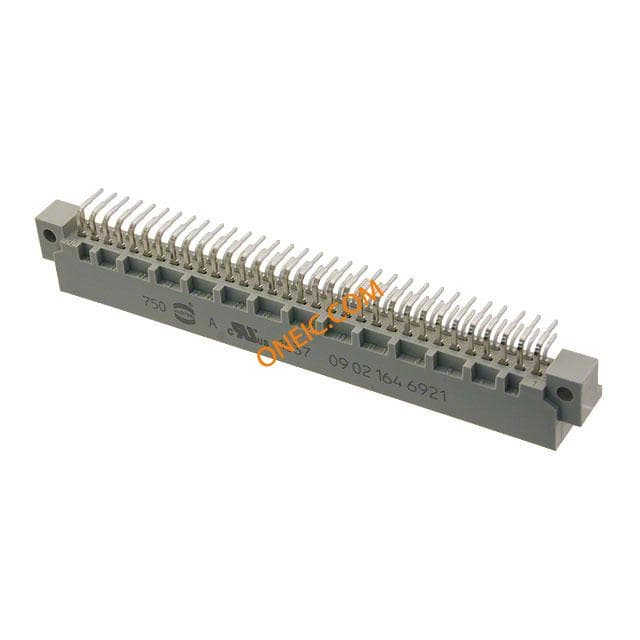

09021646921

Harting Technology Group

Conn Shrouded Header M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P 2A MALE R/A SLDR DIN-SIGNAL B064POS MS-3,0C1-2 64 way 2 row body DIN41612 a/b plug,2A DINConnector;64;2A(Max.);2.54mm(Row);Male;AngledSolderPin;3mm Socket; DIN 41612,type B; male; PIN:64; a+b; THT; angled 90°; 2A Plug; DIN 41612,type B; female; PIN:64; a+b; THT; straight; 2A Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b, 直角 DIN 41612 插头, 焊接端接

¥12.1716

详情

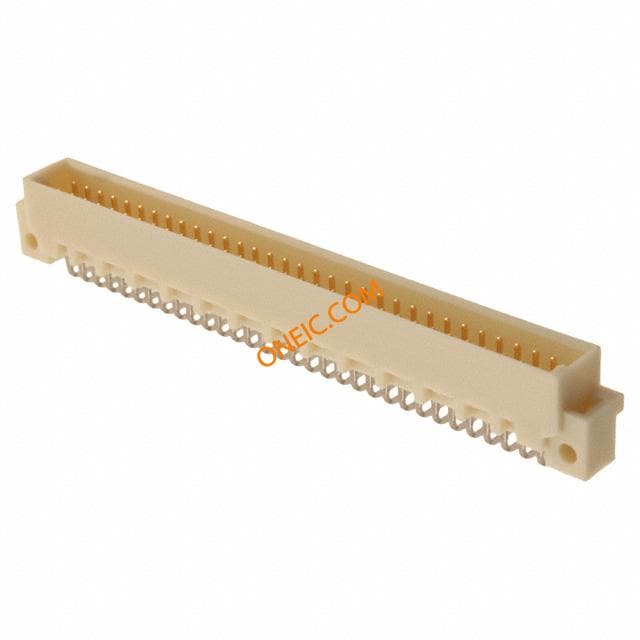

09021647919

Harting

DIN-SIGNAL B064POS MR-3,0C1-3 DIN 41612 Connectors DIN-SIGNAL B064MR-3,0C1-3

¥15.1640

详情

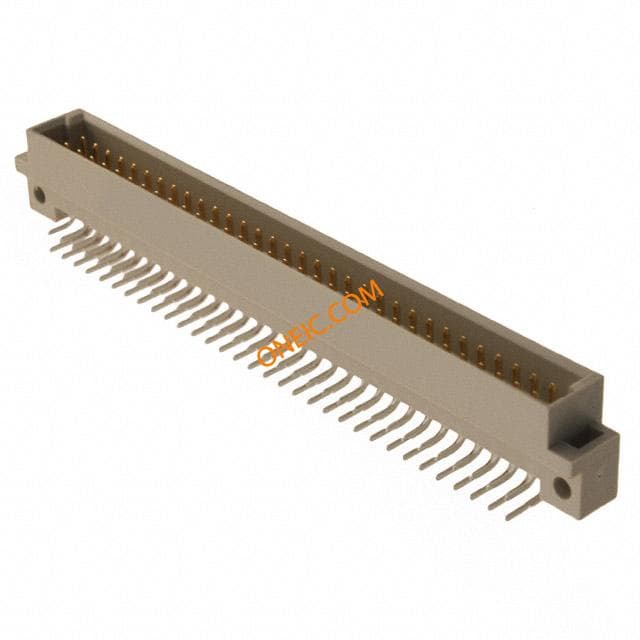

09026646921
