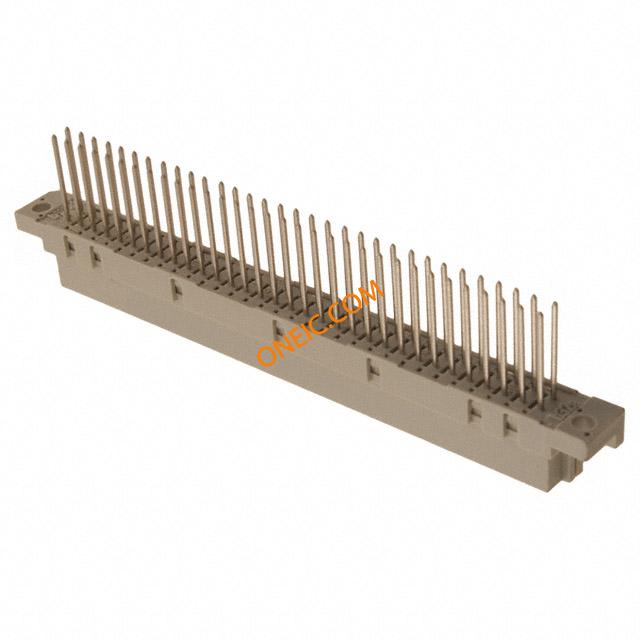

09022646821
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 02 09 09-02-264-6821 264 6821 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 8.1 | Pitch | 0.100" (2.54mm) |
| Height | 11.6 | Weight | 0.01 kg |
| Packaging | Bulk | Shell Size | B |
| Orientation | 直 | Termination | Wire Wrap |
| Lead Spacing | len. 13mm | Length - Pin | 13mm |
| Length - Tail | 13 mm | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Palladium Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 95mm | Package Quantity | 20 |
| Primary Material | Industrial | Termination Rows | 绕线 |
| Connector - Cable | plug | Pin Hole Diameter | 2.54mm |
| Termination Style | Wire Wrap | Number of Contacts | 64 |
| Number of Positions | 64 | Material - Insulation | Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 2.8mm | Contact Material - Plating | gold plated |
| Material - Housing & Prism | thermoplastic | 1st Connector Mounting Feature | a+b |
Product Info
| Spg | 20 | Type | DIN 41612 |
| Style | B | Gender | F |
| Features | Backplane | CAD Drawing | 3D CAD Model |
| Number of Units | 1 | Outlet Types and Quantity | A/b |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | -55...125°C |
