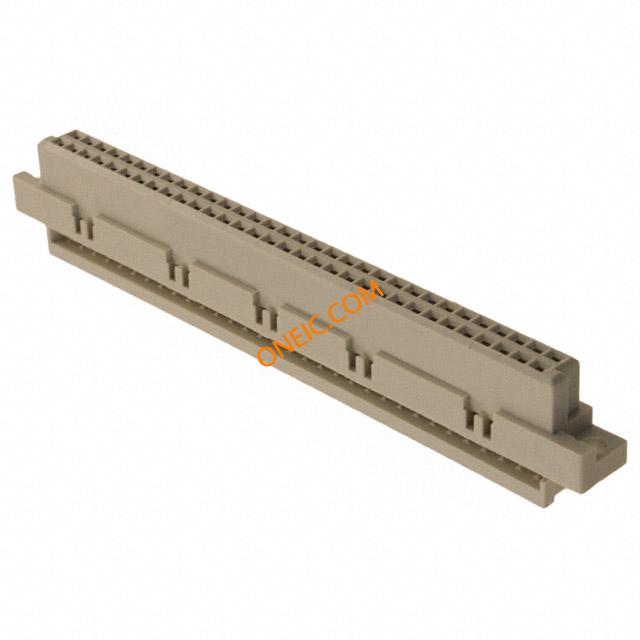

09022646828

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 F 64 POS 2.54mm IDT RA Cable Mount DIN 41612 Connectors 64P 2A FEMALE IDC DIN-SIGNAL B064POS FD-C1-2 64 way a/b DIN 41612 indirectedge socket Plug; DIN 41612,type B; female; PIN:64; a+b; IDC; gold plated; 2A Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b, 直角 DIN 41612 插座, IDT端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	02 09 09-02-264-6828 264 6828	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	20

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

最大额定电流

机械参数

深度	8.1	间距	0.100" (2.54mm)
高度	15.3	重量	0.01 kg
包装方式	Bulk	方向	直角
端接方式	IDT	安装类型	Right Angle
连接器类型	Receptacle, Female Sockets	接触镀层	Gold Over Nickel
排数	2	触头材料	Copper Alloy
壳体材料	Thermoplastic	总长度	95
包装数量	10	端接排数	IDT
连接器 - 电缆	plug	端接样式	IDC
触点数	64	位数	64
绝缘材料 - 材质	Thermoplastic, Glass Filled	触点材料 - 镀层	gold plated
外壳与棱镜材料	thermoplastic	第一连接器安装特征	a+b

产品信息

SPG	10	类型	DIN 41612
样式	B	连接器性别	F
CAD图纸	3D CAD Model	单元数量	1
插座类型与数量	A/b	加载位置数	All

环境参数

额定等级	C2	级别、等级	2
机械寿命	400cycles	工作温度	+125°C
