点击放大查看

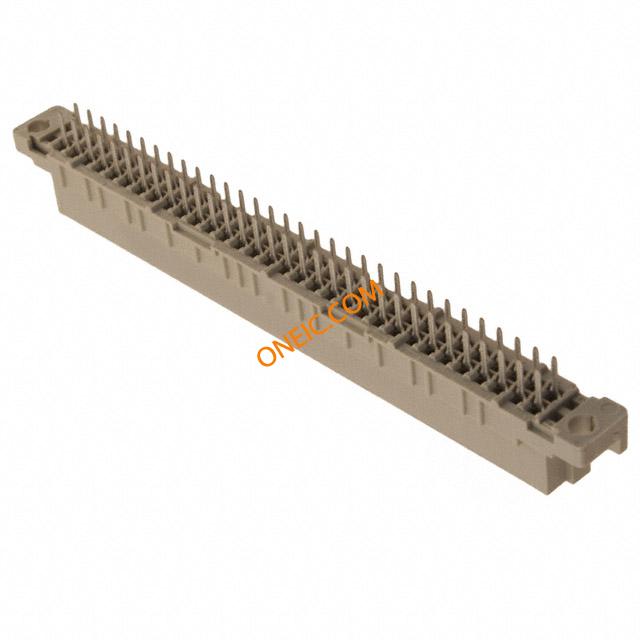

09022646825
| Manufacturer | |
| Description | Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL B064POS FS-4,5C1-2 64 way 2 row DIN41612 socket,4mm replacementfor597-8604 Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b 直向 DIN 41612 插座, 焊接端接 |
| Category |
商业参数
| 零件号别名 | 02 09 09-02-264-6825 264 6825 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | IEC60603-2 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 深度 | 8 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 11.6 mm | 包装方式 | Bulk |
| 外壳尺寸 | B | 方向 | 直 |
| 端接方式 | Solder | 引脚长度（针脚） | 4.5mm |
| 尾部长度 | 4.5 mm | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 94.9 mm |
| 主要材料 | Industrial | 端接排数 | 焊接 |
| 插针孔直径 | 2.54mm | 端接样式 | Solder Pin |
| 触点数 | 64 | 位数 | 64 |
| 绝缘材料 - 材质 | Thermoplastic, Glass Filled | 安装孔直径 | 2.8mm |
产品信息
| 类型 | DIN 41612 | 样式 | B |
| 连接器性别 | F | 产品特性 | Backplane |
| CAD图纸 | 3D CAD Model | 插座类型与数量 | A/b |
| 加载位置数 | All | ||
环境参数
| 额定等级 | C2 | 级别、等级 | 2 |
