09021646922

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 M 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P MALE RA TYPE B 2.54MM STANDARD DIN-SIGNAL B064POS MS-3,0C1-2 Socket; DIN 41612,type B; male; PIN:64; a+b; THT; straight; 2A Harting 09 02 系列 64 路, B型 C2等级 a/b 直向 DIN 41612 插头, 焊接端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	02 09 09-02-164-6922 164 6922	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	20

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

接触电阻

最大额定电流

2 A

机械参数

间距	0.100" (2.54mm)	高度	13
重量	0.01 kg	包装方式	Bulk
方向	straight	端接方式	Solder
引脚间距	len. 3mm	安装类型	Through Hole
连接器类型	Header, Male Pins	接触镀层	Gold Over Nickel
排数	2	触头材料	Copper Alloy
壳体材料	Thermoplastic	总长度	94
包装数量	50	端接排数	焊接
连接器 - 电缆	socket	端接样式	Solder
触点数	64	位数	64
绝缘材料 - 材质	Thermoplastic, Glass Filled	触点材料 - 镀层	gold plated
外壳与棱镜材料	thermoplastic	第一连接器安装特征	a+b

产品信息

SPG	50	类型	DIN 41612
样式	B	连接器性别	M
系列	DIN 41612	产品子类型	Plugs
单元数量	1	插座类型与数量	A/b
加载位置数	All

环境参数

额定等级	C2	级别、等级	2
机械寿命	400cycles	工作温度	-55...125°C

相关型号

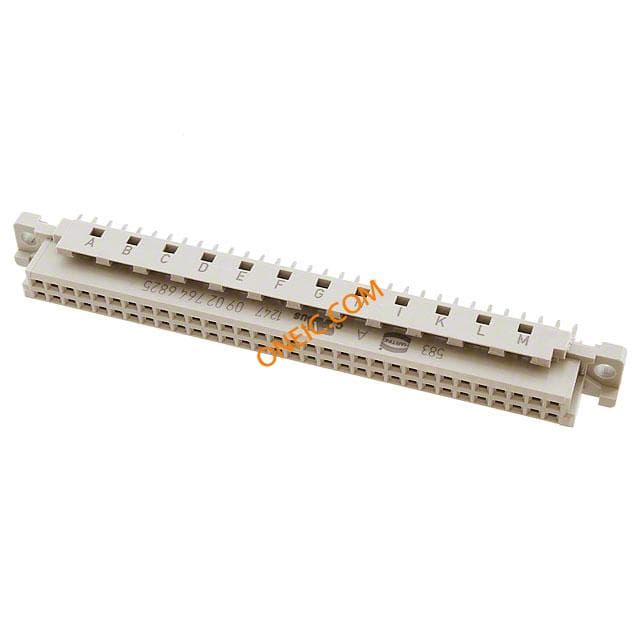

09027646825

HARTING

DIN 41612 Connectors DIN-SIGNAL B064FS-4,5C1-2-COD DIN-SIGNAL B064POS FS-4,5C1-2

¥42.2015

详情

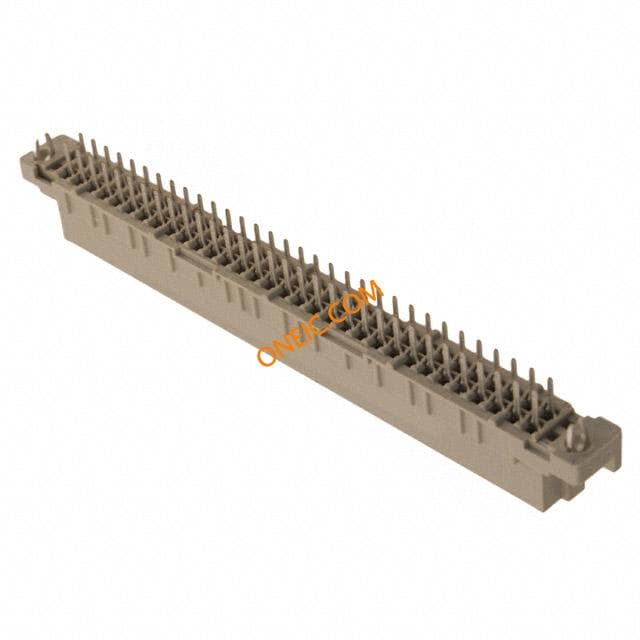

09024646825

HARTING

DIN 41612 Connectors DIN-SIGNAL B064FS-4,5C1-2CLIP DIN-SIGNAL B064POS FS-4,5C1-2

¥37.9100

详情

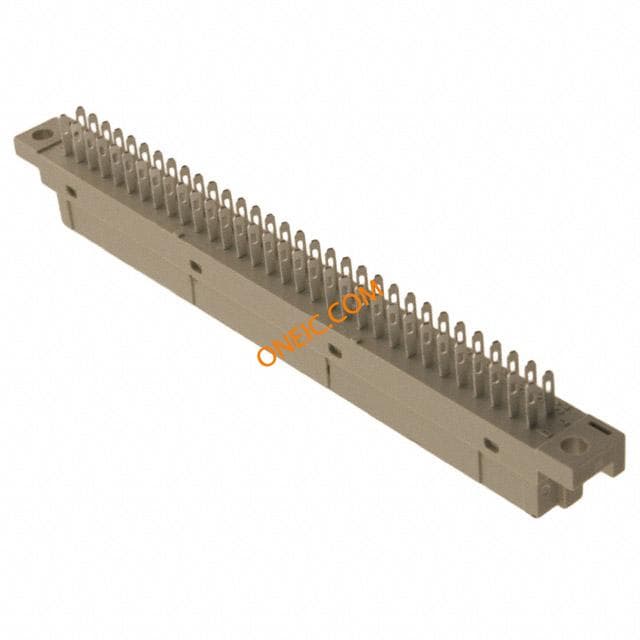

09022646823

HARTING

DIN 41612 Connectors DIN-SIGNAL B064FL-5,2C1-2 TYPE B FEMALE CONNECTOR , SOLDER LUG 5,2 64 POL DIN-SIGNAL B064POS FL-5,2C1-2

¥54.1620

详情

09020009920

Harting Technology Group

Connector Accessories Male Connector Right Fixing Bracket DIN 41612 Connectors RIGHT FIXING BRACKET FOR SHELL HOUSING C DIN-SIGNAL FIXING BRACKET RIGHT FixingBracket;Fixing;Male;ShellhousingC;RoHSCompliant Harting 09 02 系列固定支架, 使用于 DIN 41612 连接器

¥11.1629

详情

09020009919

Harting Technology Group

Connector Accessories Male Connector Left Fixing Bracket DIN 41612 Connectors LEFT FIXING BRACKET FOR SHELL HOUSING C DIN-SIGNAL FIXING BRACKET LEFT FixingBracket;Fixing;Male;ShellHousingC;RoHSCompliant Harting 09 02 系列固定支架, 使用于 DIN 41612 连接器

¥13.5476

详情

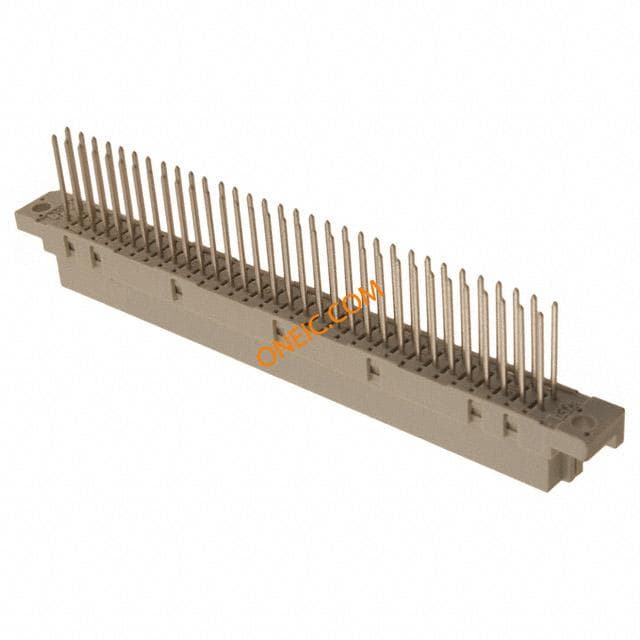

09022646821

Harting Technology Group

Conn DIN 41612 F 64 POS 2.54mm Wire Wrap ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL B064POS FW-13C1-2 64 way 2 row DIN41612 socket,13mm Connector,Din41612,Female,64Contacts,StraightWrapPost Plug; DIN 41612,type B; female; PIN:64; a+b; wrapped connections Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b 直向 DIN 41612 插座, 绕线端接

¥59.8998

详情

09022646828

Harting Technology Group

Conn DIN 41612 F 64 POS 2.54mm IDT RA Cable Mount DIN 41612 Connectors 64P 2A FEMALE IDC DIN-SIGNAL B064POS FD-C1-2 64 way a/b DIN 41612 indirectedge socket Plug; DIN 41612,type B; female; PIN:64; a+b; IDC; gold plated; 2A Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b, 直角 DIN 41612 插座, IDT端接

¥58.7520

详情

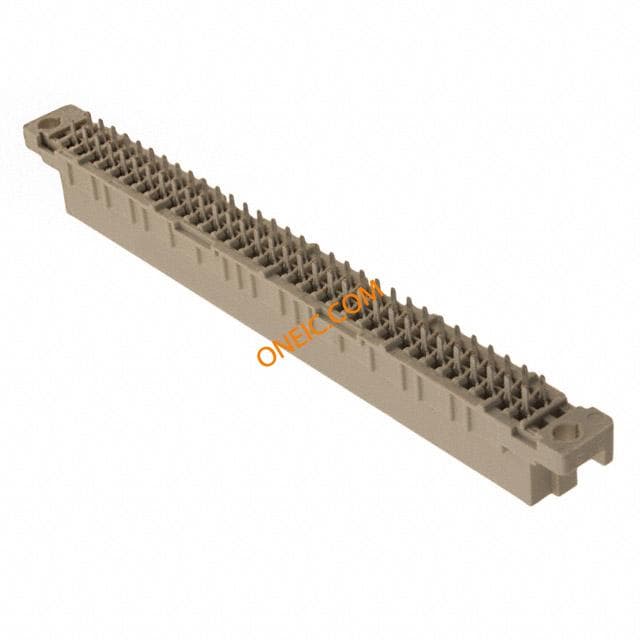

09022646824

Harting Technology Group

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL B064POS FS-2,9C1-2 Connector DIN-Signal solder 64-way f Connector; Din 41612; Female; 64 Contacts; Straight; Solder Pin Connector,Din41612,Female,64Contacts,Straight,SolderPin Plug; DIN 41612,type B; female; PIN:64; a+b; THT; straight; 2A Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b 直向 DIN 41612 插座, 焊接端接

¥28.9333

详情

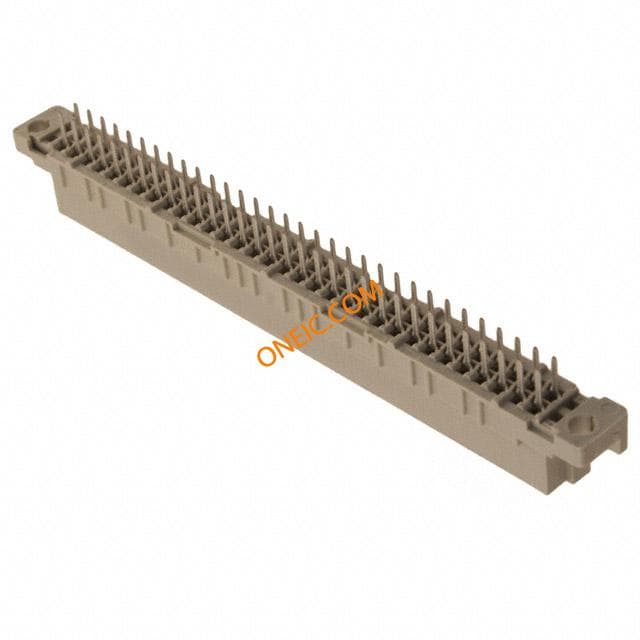

09022646825

Harting Technology Group

Conn DIN 41612 F 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A FEMALE STRT DIN-SIGNAL B064POS FS-4,5C1-2 64 way 2 row DIN41612 socket,4mm replacementfor597-8604 Harting 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b 直向 DIN 41612 插座, 焊接端接

¥34.6528

详情

09020009921

Harting

DIN-SIGNAL FIXING BRACKET LEFT DIN 41612 Connectors LEFT FIXING BRKT TYPE M STANDARD

¥9.3100

详情

09020009922

Harting

DIN-SIGNAL FIXING BRACKET RIGHT DIN 41612 Connectors RIGHT FIXING BRKT TYPE M STANDARD

¥9.0440

详情

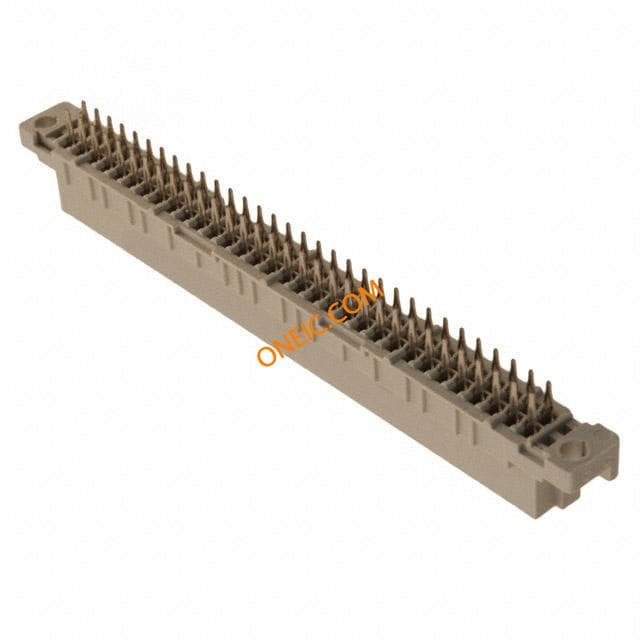

09022646850
