点击放大查看

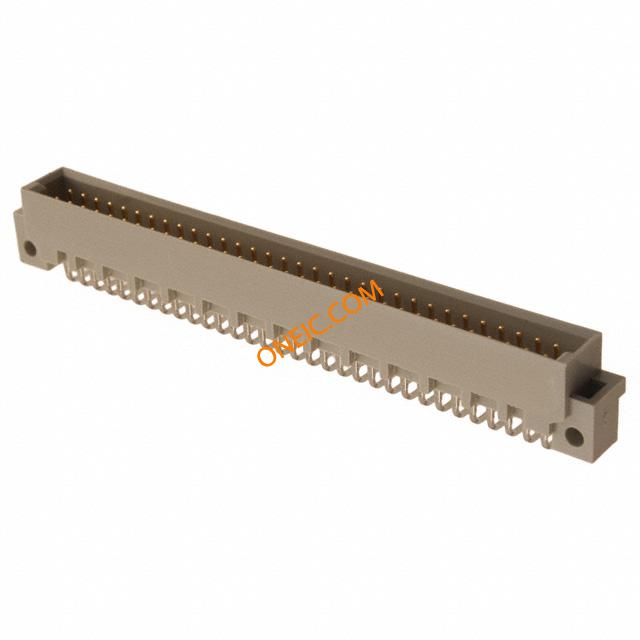

09021647921
| Manufacturer | |
| Description | Conn DIN 41612 M 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors 64P MALE RA TYPE B 2.54MM STANDARD DIN-SIGNAL B064POS MS-3,0C1-3 64 way 2 row DIN41612 plug,r/a terminals Harting 64 路 2.54mm 节距, B型 C3等级, 2 行 a/b, 直角 DIN 41612 插头, 焊接端接 |
| Category |
商业参数
| 零件号别名 | 02 09 09-02-164-7921 164 7921 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 深度 | 15.18 mm | 间距 | 0.100" (2.54mm) |
| 高度 | 8.5 mm | 包装方式 | Bulk |
| 方向 | 直角 | 端接方式 | Solder |
| 尾部长度 | 3 mm | 安装类型 | Right Angle |
| 连接器类型 | Header, Male Pins | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 94 mm | 端接排数 | 焊接 |
| 端接样式 | Solder Pin | 触点数 | 64 |
| 位数 | 64 | 绝缘材料 - 材质 | Thermoplastic, Glass Filled |
产品信息
| 类型 | DIN 41612 | 样式 | B |
| 连接器性别 | M | CAD图纸 | 3D CAD Model |
| 产品子类型 | Plugs | 插座类型与数量 | A/b |
| 加载位置数 | All | ||
环境参数
| 额定等级 | C3 | 级别、等级 | 3 |
| 工作温度 | -55C to 125C | ||
