点击放大查看

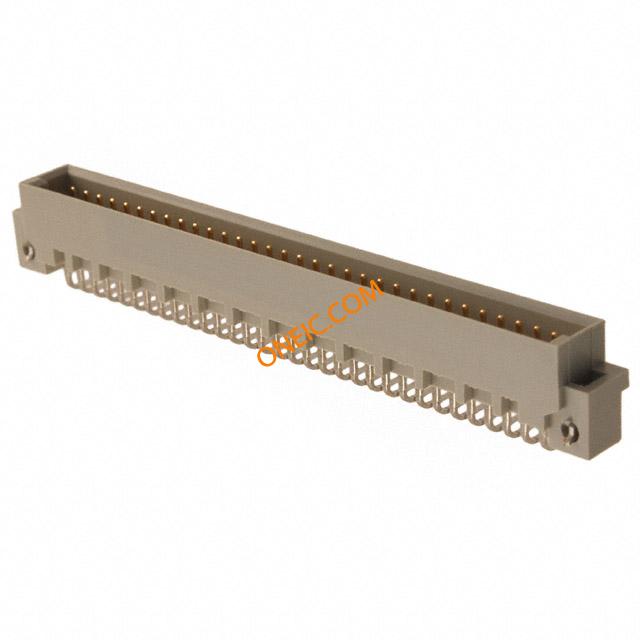

09023646921

Manufacturer	HARTING Technology Group
Description	Conn DIN 41612 HDR 64 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors B064MS-3,0C1-2-CLIP DIN SIGNAL DIN-SIGNAL B064POS MS-3,0C1-2 Connector DIN-Signal solder 64-way m ConnectorDIN-Signalsolder64-waym Harting 09 03 系列 64 路 2.54mm 节距, B型 C2等级, 2 行 a/b, 直角 DIN 41612 插头, 焊接端接
Category	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	02 09 09-02-364-6921 364 6921	标准包装数量	1
工厂包装数量	20

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

接触电阻

20mΩ

最大额定电流

机械参数

深度	15.18 mm	间距	0.100" (2.54mm)
高度	8.5 mm	包装方式	Bulk
方向	直角	端接方式	Solder
安装类型	Right Angle	连接器类型	Header, Male Pins
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	2	触头材料	Copper Alloy
壳体材料	Thermoplastic	总长度	94 mm
端接排数	a/b	端接样式	Solder
触点数	64	位数	64
绝缘材料 - 材质	Thermoplastic, Glass Filled

产品信息

类型	DIN 41612	样式	B
连接器性别	HDR	系列	09 03
产品特性	Mounting Clips	等级代码	C2
CAD图纸	3D CAD Model	产品子类型	Plugs
插座类型与数量	A/b	加载位置数	All

环境参数

额定等级	C2	级别、等级	2
工作温度	+125°C
