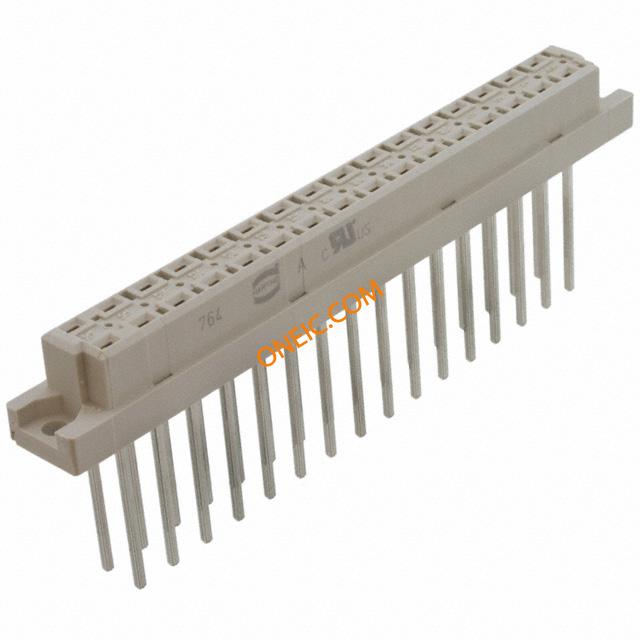

09042326821
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 04 09 09-04-232-6821 232 6821 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 6A | ||
Mechanical
| Depth | 10.5 | Pitch | 0.200" (5.08mm) |
| Height | 11.5 | Packaging | Bulk |
| Orientation | 直 | Termination | Wire Wrap |
| Length - Tail | 20 mm | Mounting Type | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 94.9 |
| Termination Rows | 绕线 | Termination Style | Wire Wrap |
| Number of Contacts | 32 | Number of Positions | 32 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | DIN 41612 | Style | D |
| Gender | F | Series | 09 |
| CAD Drawing | 3D CAD Model | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
