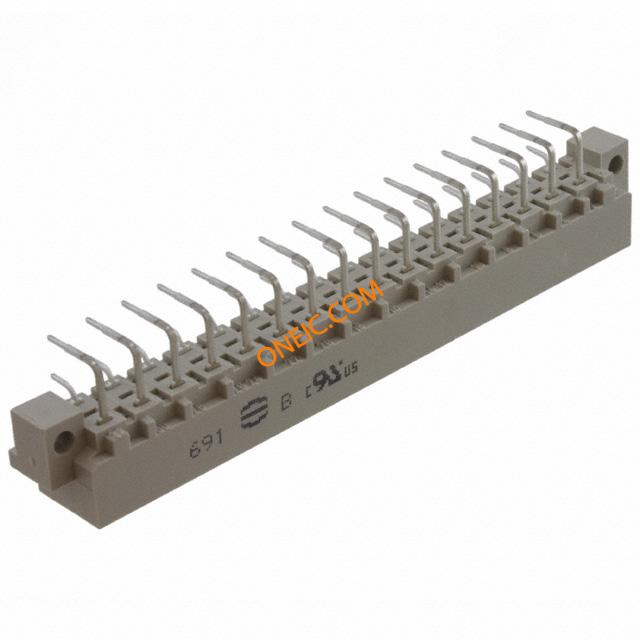

09041322921

点击放大查看

09041322921

Manufacturer
HARTING Technology Group
Description
Conn Shrouded Header HDR 32 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors DINPWRD032MS 3.0C1-1 DIN-POWER D032MS-3,0C1-1 Connector DIN-Power solder 32-way m ConnectorDIN-Powersolder32-waym Harting 09 04 系列 32 路 5.08mm 节距, D型 C1等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接
Category
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

零件号别名04 09 09-04-132-2921 132 2921标准包装数量1
工厂包装数量20

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

额定电压125 V ac接触电阻15mΩ
最大额定电流6A

机械参数

深度17.72间距0.200" (5.08mm)
高度11包装方式Bulk
方向直角端接方式Solder
安装类型Right Angle连接器类型Header, Male Pins
接触镀层Gold Over Nickel排数2
触头材料Copper Alloy壳体材料Thermoplastic
总长度93.95端接排数a/b
端接样式Solder触点数32
位数32 (Power)绝缘材料 - 材质Thermoplastic, Glass Filled

产品信息

类型Shrouded Header样式D
连接器性别HDR系列09 04
等级代码C1CAD图纸3D CAD Model
产品子类型Plugs插座类型与数量A/c
加载位置数All

环境参数

额定等级C1级别、等级1
工作温度+125°C
