点击放大查看

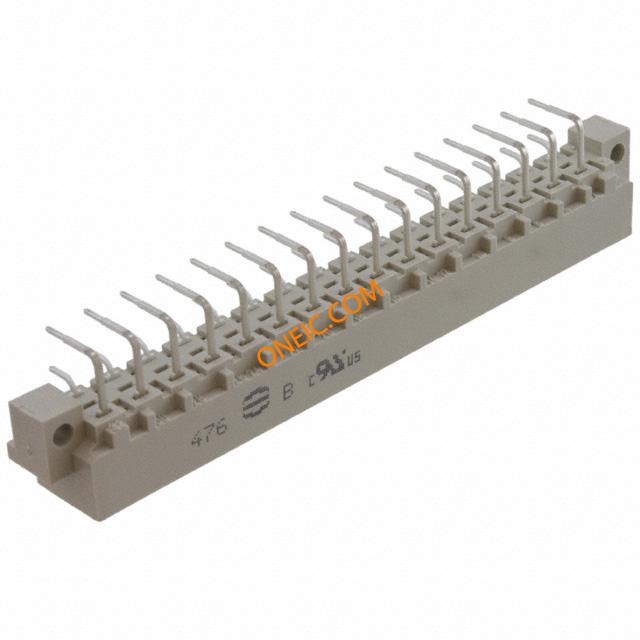

09041326921
| Manufacturer | |
| Description | DIN-POWER D032MS-3,0C1-2 DIN 41612 Connectors 32P 6A MALE R/A SLDR 32 way DIN41612 plug BackPlaneConnector,PrintedBoard;32;6A(Max.);5.08mm;Male;3mm Socket; DIN 41612,type D; male; PIN:32; a+c; THT; angled 90°; 6A Harting 32 路 5.08mm 节距, D型 C2等级, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接 |
| Category |
商业参数
| 零件号别名 | 04 09 09-04-132-6921 132 6921 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Compliant | 标准 | IEC60603-2 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 6A | ||
机械参数
| 间距 | 0.200" (5.08mm) | 长度 | 3mm |
| 重量 | 0.01 kg | 包装方式 | Bulk |
| 外壳尺寸 | D | 方向 | angled 90° |
| 端接方式 | Solder | 引脚间距 | len. 3mm |
| 引脚长度（针脚） | 3mm | 尾部长度 | 3 mm |
| 安装类型 | Through Hole, Right Angle | 行程角度 | Right |
| 连接器类型 | Header, Male Pins | 接触镀层 | Gold |
| 引脚数 | 32 | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 93.95mm | 包装数量 | 20 |
| 主要材料 | Industrial | 端接排数 | 焊接 |
| 连接器 - 电缆 | socket | 插针孔直径 | 5.08mm |
| 端接样式 | Solder Pin | 触点数 | 32 |
| 位数 | 32 (Power) | 绝缘材料 - 材质 | Thermoplastic, Glass Filled |
| 安装孔直径 | 2.55mm | 触点材料 - 镀层 | gold plated |
| 外壳与棱镜材料 | thermoplastic | 第一连接器安装特征 | a+c |
产品信息
| SPG | 20 | 类型 | D |
| 样式 | D | 连接器性别 | Male |
| 系列 | 9 | 产品特性 | Backplane |
| CAD图纸 | 3D CAD Model | 单元数量 | 1 |
| 插座类型与数量 | A/c | 加载位置数 | All |
环境参数
| 额定等级 | C2 | 距离 | 3mm(Min.) |
| 级别、等级 | 2 | 机械寿命 | 400cycles |
| 工作温度 | -55...125°C | ||
