点击放大查看

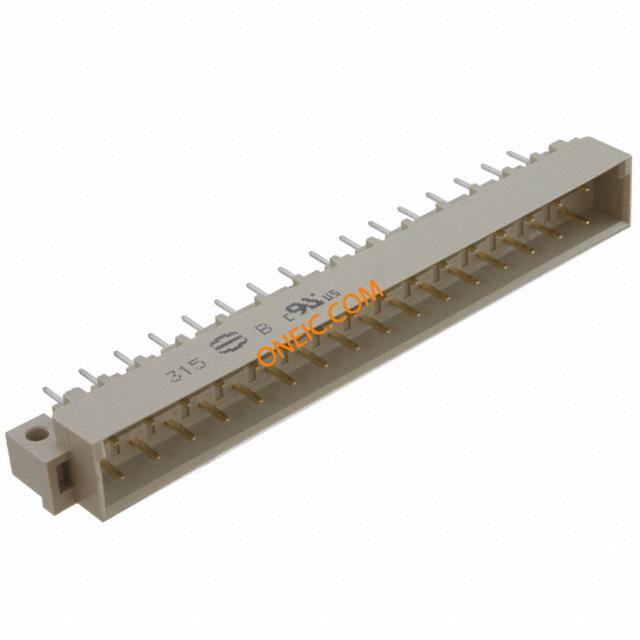

09041326922
| Manufacturer | |
| Description | Conn Shrouded Header HDR 32 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors DINPWRD032MS 3.0C1-2 DIN-POWER D032MS-3,0C1-2 Connector DIN-Signal solder 32-way m ConnectorDIN-Signalsolder96-waym Harting 09 04 系列 32 路 5.08mm 节距, D型 C2等级, 2 行 a/c 直向 DIN 41612 插头, 焊接端接 |
| Category |
商业参数
| 零件号别名 | 04 09 09-04-132-6922 132 6922 | 标准包装数量 | 1 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 125 V ac | 接触电阻 | 15mΩ |
| 最大额定电流 | 6A | ||
机械参数
| 深度 | 10.9 | 间距 | 0.200" (5.08mm) |
| 高度 | 12.95 | 包装方式 | Bulk |
| 方向 | 直 | 端接方式 | Solder |
| 安装类型 | Straight | 连接器类型 | Header, Male Pins |
| 接触镀层 | Gold Over Palladium Nickel Over N... | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 93.95 | 端接排数 | a/b |
| 端接样式 | Solder | 触点数 | 32 |
| 位数 | 32 (Power) | 绝缘材料 - 材质 | Thermoplastic, Glass Filled |
产品信息
| 类型 | Shrouded Header | 样式 | D |
| 连接器性别 | HDR | 系列 | 09 04 |
| 等级代码 | C2 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Plugs | 插座类型与数量 | A/c |
| 加载位置数 | All | ||
环境参数
| 额定等级 | C2 | 级别、等级 | 2 |
| 工作温度 | +125°C | ||
相关型号
09042327832
HARTING
DIN 41612 Connectors DIN-POWER D032FS-2,9C1-3 DIN-POWER D032FS-2,9C1-3
09052482831
HARTING
DIN 41612 Connectors DIN-POWER E048FS-4,5C1-1 Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN-POWER E048FS-4,5C1-1

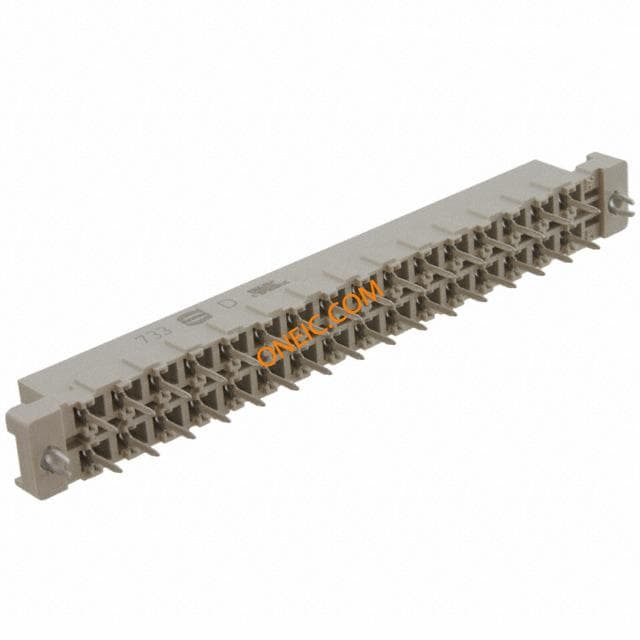

09043326831
HARTING
DIN 41612 Connectors DIN-POWER D032FS-4,5C1-2-CLIP DIN-POWER D032FS-4,5C1-2-CLIP
09020009920
Harting Technology Group
Connector Accessories Male Connector Right Fixing Bracket DIN 41612 Connectors RIGHT FIXING BRACKET FOR SHELL HOUSING C DIN-SIGNAL FIXING BRACKET RIGHT FixingBracket;Fixing;Male;ShellhousingC;RoHSCompliant Harting 09 02 系列 固定支架, 使用于 DIN 41612 连接器

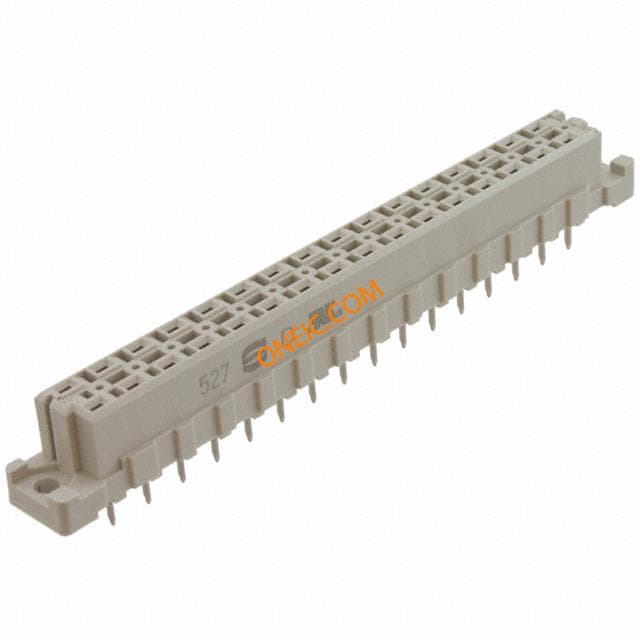

09042326831
Harting Technology Group
Conn DIN 41612 F 32 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 32P 6A FEMALE STRT DIN-POWER D032FS-4,5C1-2 32 way DIN41612 PCB socket GdsA-DSeries,StraightSolderPin-.125PCB(.157Long),Female,32Contact Harting 32 路 5.08mm 节距, D型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 焊接端接
09020009919
Harting Technology Group
Connector Accessories Male Connector Left Fixing Bracket DIN 41612 Connectors LEFT FIXING BRACKET FOR SHELL HOUSING C DIN-SIGNAL FIXING BRACKET LEFT FixingBracket;Fixing;Male;ShellHousingC;RoHSCompliant Harting 09 02 系列 固定支架, 使用于 DIN 41612 连接器
09042326821
Harting Technology Group
Conn DIN 41612 F 32 POS 5.08mm Wire Wrap ST Panel Mount DIN 41612 Connectors 32P 6A FEMALE STRT DIN-POWER D032FW-20,0C1-2 32 way DIN41612 wire-wrap socket Harting 32 路 5.08mm 节距, D型 C2等级, 2 行 a/c 直向 DIN 41612 插座, 绕线端接

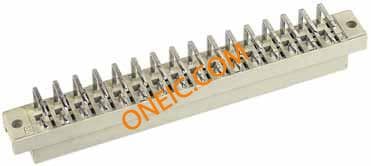

09042326826
