ONEIC.US
09041327921

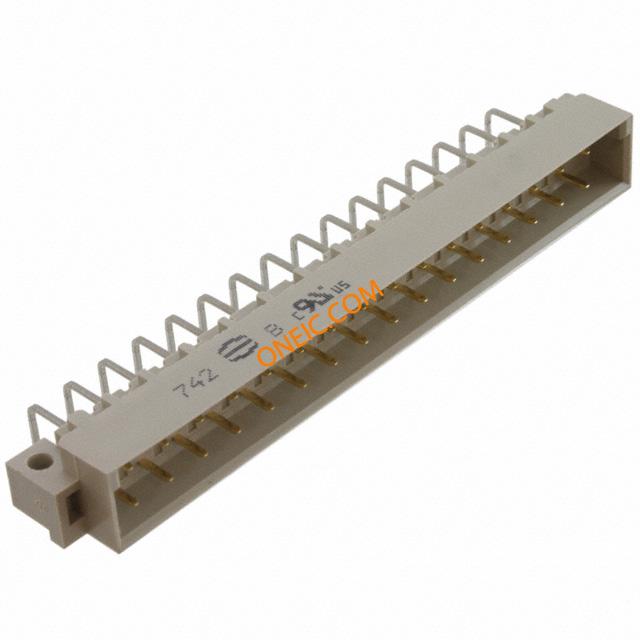

点击放大查看

09041327921

Manufacturer
HARTING Technology Group
Description
DIN-POWER D032MS-3,0C1-3 DIN 41612 Connectors DINPWRD032MS 3.0C1-3 Harting 09 04 系列 32 路 5.08mm 节距, D型, 2 行 a/c, 直角 DIN 41612 插头, 焊接端接
Category
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

零件号别名04 09 09-04-132-7921 132 7921标准包装数量1
工厂包装数量20

合规参数

RoHSRoHS Compliant材料阻燃等级UL94 V-0

电气参数

接触电阻15mΩ最大额定电流6 A

机械参数

间距0.200" (5.08mm)包装方式Bulk
方向直角端接方式Solder
安装类型Through Hole, Right Angle连接器类型Header, Male Pins
接触镀层Gold排数2
触头材料Copper Alloy壳体材料Polybutylene Terephthalate (PBT)
端接排数焊接端接样式Solder
触点数32位数32 (Power)
绝缘材料 - 材质Thermoplastic, Glass Filled

产品信息

类型D样式D
系列09 04产品子类型Plugs
插座类型与数量A/c加载位置数All

环境参数

级别、等级3工作温度- 55 C to + 125 C
