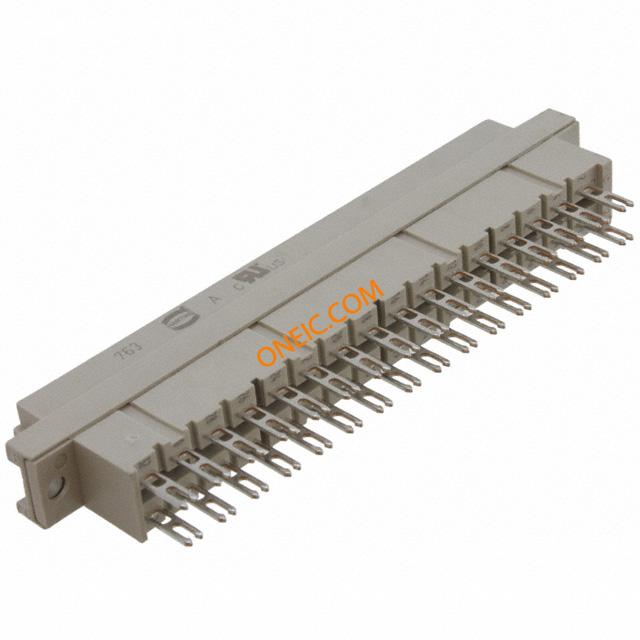

09042326823
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 04 09 09-04-232-6823 232 6823 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 6 A | ||
Mechanical
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Orientation | 直 | Termination | Solder Eyelet(s) |
| Mounting Type | Panel Mount; Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Rows | 焊片 | Termination Style | Solder |
| Number of Contacts | 32 | Number of Positions | 32 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | D | Style | D |
| Series | DIN 41612 | Product Type | Receptacles |
| Outlet Types and Quantity | A/c | Number of Positions Loaded | All |
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | - 55 C to + 125 C | ||
