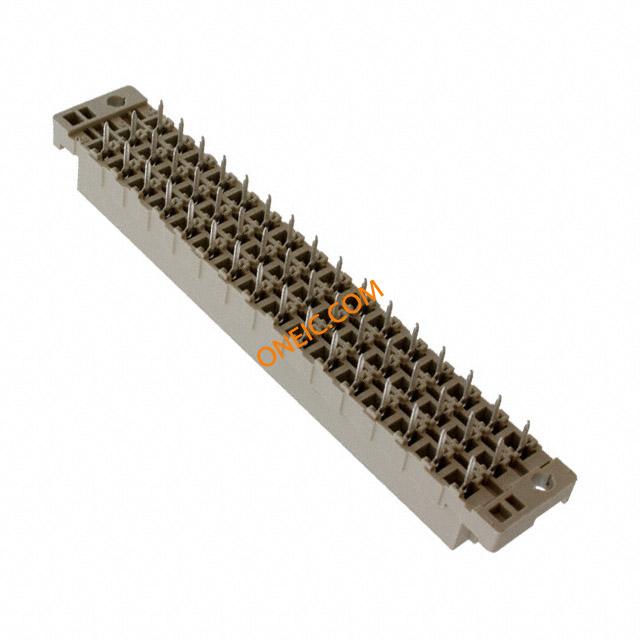

09052482831
| Manufacturer | |
| Description | DIN 41612 Connectors DIN-POWER E048FS-4,5C1-1 Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN-POWER E048FS-4,5C1-1 |
| Category |
商业参数
| 零件号别名 | 05 09 09-05-248-2831 248 2831 | 标准包装数量 | 1 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 6 A | ||
机械参数
| 深度 | 15.5 | 间距 | 0.200" (5.08mm) |
| 高度 | 11.6 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 94.9 |
| 端接样式 | Solder | 触点数 | 48 |
| 位数 | 48 (Power) | 绝缘材料 - 材质 | Thermoplastic, Glass Filled |
产品信息
| 类型 | DIN 41612 | 样式 | D |
| 连接器性别 | F | 产品子类型 | Receptacles |
| 加载位置数 | All | ||
环境参数
| 级别、等级 | 1 | 工作温度 | - 55 C to + 125 C |
