IGBT Modules - 型号列表

483 parts in total

Mfr Part #	Quantity Available	Standard Package	RoHS	IGBT Type	Vgs (Max)	Power - Max	Voltage - Supply	Voltage - Input (Min)	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max)	Current - Collector Cutoff (Max)	Mounting Type	Package / Case	Supplier Device Package	Configuration	Product	Vce Saturation (Max)	Power - Average Forward	Current - Continuous Drain (Id) @ 25degC	Mounting Style	Manufacturer	Operating Temperature	Input	NTC Thermistor	Input Capacitance (Cies) @ Vce	Gate Charge (Qg) (Max) @ Vgs	Number of Positions	Packaging	Tradename	Factory Pack Quantity	Width	Height	Length	Input Type	Gate Charge	Switching Energy	Td (on/off) @ 25degC	Current - Collector Pulsed (Icm)	Test Condition	Standard Package Name	EU RoHS	Power Dissipation (Max)	Package Quantity	Channel Type	Lead Style
APTGF50DA120CT1G Trans IGBT Module N-CH 1.2KV 75A 10-Pin Case SP1 MOD IGBT NPT SIC CHOPPER SP1 Microchip Technology Inc.	-	Bulk	Lead free / RoHS Compliant	NPT	±20 V	312W	1200V	1200 V	3.7V @ 15V, 50A	75A	75 A	Screw	10Case SP1	SP1	Single	-	-	-	-	-	-	-	Standard	Yes	3.45nF @ 25V	-	10	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
APTGF50SK120T1G Trans IGBT Module N-CH 1.2KV 75A 12-Pin Case SP1 IGBT 1200V 75A 312W SP1 Microchip Technology Inc.	-	Bulk	Lead free / RoHS Compliant	NPT	±20 V	312W	1200V	1200 V	3.7V @ 15V, 50A	75A	75 A	Screw	12Case SP1	SP1	Single	-	-	-	-	-	-	-	Standard	Yes	3.45nF @ 25V	-	12	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
APTGF660U60D4G Trans IGBT Module N-CH 600V 860A 4-Pin Case D4 IGBT 600V 860A 2800W D4 Microchip Technology Inc.	-	Bulk	Lead free / RoHS Compliant	NPT	±20 V	2800W	600V	600 V	2.45V @ 15V, 800A	860A	860 A	Screw	4Case D4	D4	Single Dual Emitter	-	-	-	-	-	-	-	Standard	No	36nF @ 25V	-	4	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
APTGL700U120D4G Trans IGBT Module N-CH 1.2KV 910A 5-Pin Case D-4 IGBT 1200V 910A 3000W D4 IGBT Modules Power Module - IGBT Microchip Technology Inc.	-	Bulk	Lead free / RoHS Compliant	Trench and Field Stop	±20 V	3000W	1200V	1200 V	2.2V @ 15V, 600A	910A	910 A	Screw	5Case D-4	D4	Single	IGBT Silicon Modules	1.8 V	3 kW	910 A	Screw	Microsemi	- 40 C	Standard	No	37.2nF @ 25V	-	5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
APTGT100SK60T1G Trans IGBT Module N-CH 600V 150A 20-Pin Case SP4 IGBT 600V 150A 340W SP4 IGBT Modules Power Module - IGBT Microchip Technology Inc.	-	Bulk	Lead free / RoHS Compliant	Trench and Field Stop	±20 V	340W	600V	600 V	1.9V @ 15V, 100A	150A	150 A	Screw	20Case SP4	SP4	Single	IGBT Silicon Modules	1.5 V	340 W	150 A	Screw	Microsemi	- 40 C	Standard	Yes	6.1nF @ 25V	400 nA	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

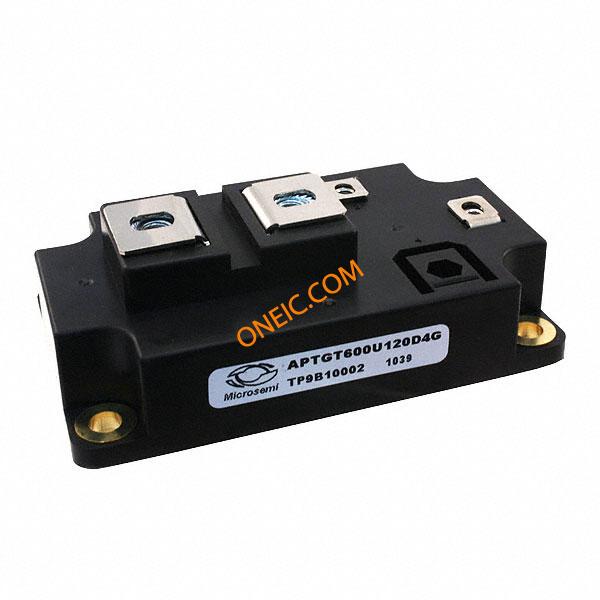

APTGT600U120D4G Trans IGBT Module N-CH 1.2KV 900A 4-Pin Case D4 IGBT 1200V 900A 2500W D4 IGBT Modules Power Module - IGBT Microchip Technology Inc.	-	Bulk	Lead free / RoHS Compliant	Trench and Field Stop	±20 V	2500W	1200V	1200 V	2.1V @ 15V, 600A	900A	900 A	Screw	4Case D4	D4	Single Dual Emitter	IGBT Silicon Modules	1.7 V	2.5 kW	900 A	Screw	Microsemi	- 40 C	Standard	No	40nF @ 25V	400 nA	4	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 APT100GN120J Trans IGBT Chip N-CH 1.2KV 153A 4-Pin SOT-227 IGBT 1200V 153A 446W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - Fieldstop Low Freq - Single Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	Trench and Field Stop	±30 V	446W	1200V	1200 V	2.1V @ 15V, 100A	153A	153 A	Screw	4SOT-227	ISOTOP®	Single Dual Emitter	IGBT Silicon Modules	1.7 V	446 W	153 A	Screw	Microsemi	- 55 C to + 150 C	Standard	No	6.5nF @ 25V	600 nA	-	Bulk	ISOTOP	15	25.4 mm	9.6 mm	38.2 mm	-	-	-	-	-	-	-	-	-	-	-	-
APT100GN120JDQ4 Trans IGBT Chip N-CH 1.2KV 153A 4-Pin SOT-227 IGBT 1200V 153A 446W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - Fieldstop Low Freq - Combi Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	Trench and Field Stop	±30 V	446W	1200V	1200 V	2.1V @ 15V, 100A	153A	153 A	Screw	4SOT-227	ISOTOP®	Single Dual Emitter	IGBT Silicon Carbide Modules	1.7 V	446 W	153 A	SMD/SMT	Microsemi	- 55 C	Standard	No	6.5nF @ 25V	600 nA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 APT100GT60JR Trans IGBT Chip N-CH 600V 148A 4-Pin SOT-227 IGBT 600V 148A 500W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - NPT Med Frequency - Single Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	NPT	±30 V	500W	600V	600 V	2.5V @ 15V, 100A	148A	148 A	Screw	4SOT-227	ISOTOP®	Single	IGBT Silicon Carbide Modules	2.1 V	500 W	148 A	SMD/SMT	Microsemi	- 55 C	Standard	No	5.15nF @ 25V	300 nA	4	Bulk	-	-	-	-	-	-	-	-	-	-	-	SOT-227	Compliant	500000	SOT-227	N	-
2 APT100GT60JRDQ4 Trans IGBT Chip N-CH 600V 148A 4-Pin SOT-227 IGBT 600V 148A 500W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - NPT Med Frequency Combi Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	NPT	±30 V	500W	600V	600 V	2.5V @ 15V, 100A	148A	148 A	Screw	4SOT-227	ISOTOP®	Single Dual Emitter	IGBT Silicon Carbide Modules	2.1 V	500 W	148 A	SMD/SMT	Microsemi	- 55 C	Standard	No	5.15nF @ 25V	300 nA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
APT150GN60B2G Trans IGBT Chip N-CH 600V 220A 3-Pin(3+Tab) TO-247 IGBT 600V 220A 536W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - Fieldstop Low Freq - Single Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	Trench and Field Stop	±30 V	536W	600V	600 V	1.85V @ 15V, 150A	220A	220 A	Through Hole	3TO-247	*	Single	IGBT Silicon Carbide Modules	1.45 V	536 W	220 A	Through Hole	Microsemi	- 55 C	-	-	-	600 nA	-	Tube	-	-	-	-	-	Standard	970nC	8.81mJ (on), 4.295mJ (off)	44ns/430ns	450A	400V, 150A, 1 Ohm, 15V	-	-	-	-	-	-
3 APT150GN60J Trans IGBT Chip N-CH 600V 220A 4-Pin SOT-227 IGBT 600V 220A 536W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - Fieldstop Low Freq - Single Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	Trench and Field Stop	±30 V	536W	600V	600 V	1.85V @ 15V, 150A	220A	220 A	Screw	4SOT-227	ISOTOP®	Single Dual Emitter	IGBT Silicon Modules	1.5 V	536 W	220 A	Screw	Microsemi	- 55 C	Standard	No	9.2nF @ 25V	600 nA	-	-	ISOTOP	1	25.4 mm	9.6 mm	38.2 mm	-	-	-	-	-	-	-	-	-	-	-	-
3 APT150GN60JDQ4 Trans IGBT Chip N-CH 600V 220A 4-Pin SOT-227 IGBT 600V 220A 536W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - Fieldstop Low Freq - Combi Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	Trench and Field Stop	±30 V	536W	600V	600 V	1.85V @ 15V, 150A	220A	220 A	Screw	4SOT-227	ISOTOP®	Single Dual Emitter	IGBT Silicon Modules	1.5 V	536 W	220 A	Screw	Microsemi	- 55 C to + 175 C	Standard	No	9.2nF @ 25V	600 nA	4	Tray	ISOTOP	1	25.4 mm	9.6 mm	38.2 mm	-	-	-	-	-	-	SOT-227	Compliant	536000	SOT-227	N	Screw
APT150GN60LDQ4G Trans IGBT Chip N-CH 600V 220A 3-Pin(3+Tab) TO-264 IGBT 600V 220A 536W TO-264L IGBT Modules Insulated Gate Bipolar Transistor - Fieldstop Low Freq - Combi Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	Trench and Field Stop	±30 V	536W	600V	600 V	1.85V @ 15V, 150A	220A	220 A	Through Hole	3TO-264	TO-264 [L]	Single	IGBT Silicon Carbide Modules	1.45 V	536 W	220 A	Through Hole	Microsemi	- 55 C	-	-	-	600 nA	-	Tube	-	-	-	-	-	Standard	970nC	8.81mJ (on), 4.295mJ (off)	44ns/430ns	450A	400V, 150A, 1 Ohm, 15V	-	-	-	-	-	-
APT200GT60JR Trans IGBT Chip N-CH 600V 195A 4-Pin SOT-227 IGBT 600V 195A ISOTOP IGBT Modules Insulated Gate Bipolar Transistor - NPT Med Frequency - Single Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	NPT	±30 V	500W	600V	600 V	2.5V @ 15V, 200A	195A	195 A	Screw	4SOT-227	SOT-227	Single Dual Emitter	IGBT Silicon Carbide Modules	2 V	500 W	195 A	SMD/SMT	Microsemi	- 55 C	Standard	No	8.65nF @ 25V	300 nA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 APT46GA90JD40 Trans IGBT Chip N-CH 900V 87A 4-Pin SOT-227 IGBT 900V 87A 284W SOT-227 IGBT Modules Insulated Gate Bipolar Transistor - PT Power MOS 8 - Combi Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	PT	±30 V	284W	900V	900 V	3.1V @ 15V, 47A	87A	87 A	Screw	4SOT-227	ISOTOP®	Single Dual Emitter	IGBT Silicon Modules	2.5 V	284 W	87 A	Screw	Microsemi	- 55 C	Standard	No	4.17nF @ 25V	100 nA	-	-	POWER MOS 8, ISOTOP	1	25.4 mm	9.6 mm	38.2 mm	-	-	-	-	-	-	-	-	-	-	-	-
APT50GF120B2RG Trans IGBT Chip N-CH 1.2KV 135A 3-Pin(3+Tab) T-MAX IGBT 1200V 135A 781W TMAX IGBT Modules Insulated Gate Bipolar Transistor - NPT Low Frequency - Single Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	NPT	±30 V	781W	1200V	1200 V	3V @ 15V, 50A	135A	135 A	Through Hole	3T-MAX	*	Single	IGBT Silicon Carbide Modules	2.5 V	781 W	135 A	Through Hole	Microsemi	- 55 C	-	-	-	+/- 100 nA	-	Tube	-	-	-	-	-	Standard	340nC	3.6mJ (on), 2.64mJ (off)	25ns/260ns	150A	800V, 50A, 1 Ohm, 15V	-	-	-	-	-	-
3 APT50GF120JRDQ3 Trans IGBT Chip N-CH 1.2KV 120A 4-Pin SOT-227 IGBT 1200V 120A 521W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - NPT Low Frequency - Combi Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	NPT	±30 V	521W	1200V	1200 V	3V @ 15V, 75A	120A	120 A	Screw	4SOT-227	ISOTOP®	Single	IGBT Silicon Modules	2.5 V	521 W	120 A	Screw	Microsemi	- 55 C to + 150 C	Standard	No	5.32nF @ 25V	100 nA	-	Bulk	ISOTOP	1	25.4 mm	9.6 mm	38.2 mm	-	-	-	-	-	-	-	-	-	-	-	-
2 APT50GF120LRG Trans IGBT Chip N-CH 1.2KV 135A 3-Pin(3+Tab) TO-264 IGBT 1200V 135A 781W TO264 IGBT Modules Insulated Gate Bipolar Transistor - NPT Low Frequency - Single Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	NPT	±30 V	781W	1200V	1200 V	3V @ 15V, 50A	135A	135 A	Through Hole	3TO-264	TO-264 [L]	Single	IGBT Silicon Carbide Modules	2.5 V	781 W	135 A	Through Hole	Microsemi	- 55 C	-	-	-	+/- 100 nA	-	Tube	-	-	-	-	-	Standard	340nC	3.6mJ (on), 2.64mJ (off)	25ns/260ns	150A	800V, 50A, 1 Ohm, 15V	-	-	-	-	-	-
APT50GP60J Trans IGBT Chip N-CH 600V 100A 4-Pin SOT-227 IGBT 600V 100A 329W SOT227 IGBT Modules Insulated Gate Bipolar Transistor - PT Power MOS 7 - Single Microchip Technology Inc.	-	Rail / Tube	Lead free / RoHS Compliant	PT	±20 V	329W	600V	600 V	2.7V @ 15V, 50A	100A	100 A	Screw	4SOT-227	ISOTOP®	Single Dual Emitter	IGBT Silicon Modules	2.2 V	329 W	100 A	SMD/SMT	Microsemi	- 55 C	Standard	No	5.7nF @ 25V	+/- 100 nA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
